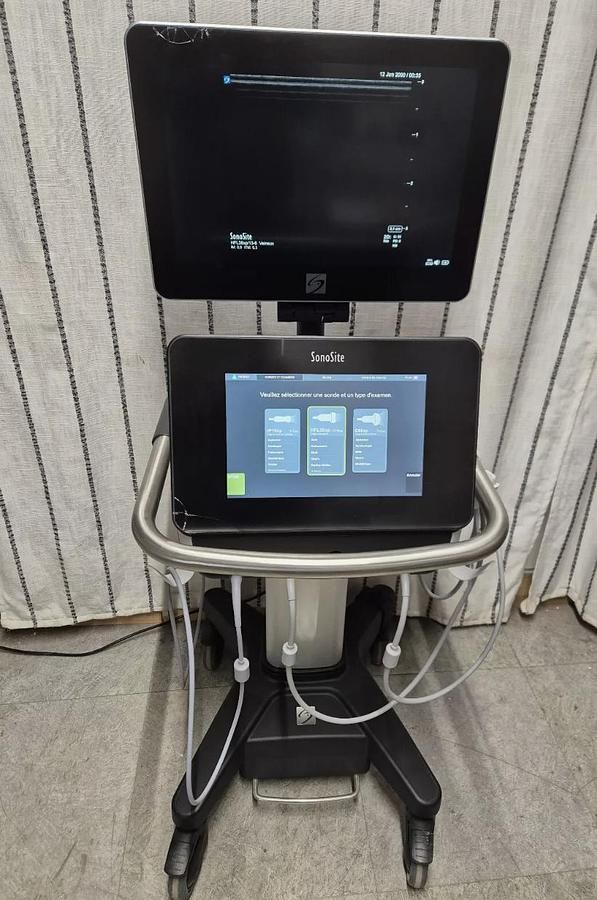

Sonosite X-Porte Ultrasound System With Cardiac

Designed to adapt to your workflow and work environment,
the X-Porte offers you a completely new ultrasound experience,
with revolutionary tools in a unique, integrated system,
unique to SonoSite.

SYSTEM SPECIFICATIONS
Stand Dimensions: 67 cm x 53.8 cm (L x W)
Stand Height: 163 cm maximum (screen open) /
107 cm minimum (screen closed)
Height Adjustment: 23 cm
12.1" Capacitive Multi-Touch Screen
System Boot Time: < 20 s
HD Display: 48.3 cm Diagonal
Control Panel Tilt: 0° to 110°
Monitor Viewing Angle: 85° horizontally,
60° upwards and 80° downwards
Architecture: Fully Digital
Dynamic Range: Up to 183 dB
Grayscale: 256 Shades
HIPAA Compliant: Comprehensive
Tools

MODES IMAGING
Widebandwidth 2D Imaging
Tissue Harmonic Imaging
Phase Inversion Harmonic Imaging
TM Mode (Updated and Simultaneous Mode)
Color Doppler
Color Energy Doppler
Pulsed Wave Doppler
Pulsed Wave Tissue Doppler
Continuous Wave Doppler, ECG

IMAGE PROCESSING
XDI (Extreme Definition Imaging)
SonoADAPT Tissue Optimization
SonoHD2 Imaging Technology
SonoMB Multi-Beam Technology
Dual Image
Dual Color Image
Automatic Gain and Brightness Adjustment
Default Gain Restoration
Dynamic Range
Duplex Imaging
8x Magnification
Post-Processing: Dynamic Range, Zoom
2D Image Optimization: Medium and Difficult
Global, Proximal, and Distal Gain Control
Color and Doppler Flow Optimization (Low,
Medium, and High)
Color Variance Mode
2D Imaging Sectoring


ENHANCEMENT
NEEDLE VISUALIZATION
(Available for these probe types and exams.)
HFL50xp: Breast, Musculoskeletal, Neurological,
or Soft Tissue Examinations
L38xp: Arterial or Venous, Soft Tissue, and Nerve Examinations
L25xp: Arterial or Venous, Musculoskeletal, and Nerve Examinations
HSL25xp: Arterial or Venous, Musculoskeletal, and Nerve Examinations
HFL38xp: Arterial or Venous, Superficial, Breast, Soft Tissue, and Nerve Examinations

POWER
Battery or AC adapter
Rechargeable lithium-ion battery
Battery life: 1.0 hour / 3 days on standby
Battery charged to 80% capacity in 3 hours

OTHER FEATURES
Programmable Controls
Annotation: Predefined annotations, personalized
annotations, and predefined pictograms
Forms: MSK (musculoskeletal) and emergency forms
(ACEP compliant)
Needle Guidance Software
*Built-in DVR
*Triple Probe Connector
*Storage Basket
*VGA Video Out
*Included as standard with the X-Porte

INTEGRATED STORAGE AND
REVIEW OF IMAGES AND VIDEOS
2D Cineloop: 20 seconds
PW Doppler, CW Doppler, and M-mode viewing: 16 seconds
64 GB Internal Flash Memory
Preview recorded images and videos as a Thumbnail images
Prospective and retrospective video recording
Automatic video export (to USB after the exam)
Video playback at normal or reduced speed (1, 1/2, or 1/4)
Video recording length: 2, 4, 6, 10, 15, 30 or 60 seconds.
Image Annotation and Recall
Image Format: JPEG, AVI, or BMP
Export Format: HTML
JPEG Compression Options: High, Medium, and Low

DATA MANAGEMENT AND WIRELESS CONNECTIVITY
5 USB 2.0 Ports
Ethernet Port
USB Port for DVR Recorder
Electrocardiograph Connector
Automatic Barcode Query
(Display Patient Profiles from Lists)
DICOM Image Management: Printing, Storage,
Modality Management, PPS (Execution and Procedure Steps),
and Storage Validation
DICOM Image Management: Exam Guidance
(Diagnostic, Intervention, or Training)
Integrated Wireless Connectivity Option: (B, G, and N)
Network

ACCESSORIES
Black and White Printer for Medical Use
(Sony UP-D897 USB)
PowerPark
Card Reader USB barcodes
Footswitch
ECG Module
SUPPORTED LANGUAGES

SUPPORTED
French, English, German, Spanish,
Italian, and Portuguese
Caution: Small chip on the top right of the screen.
