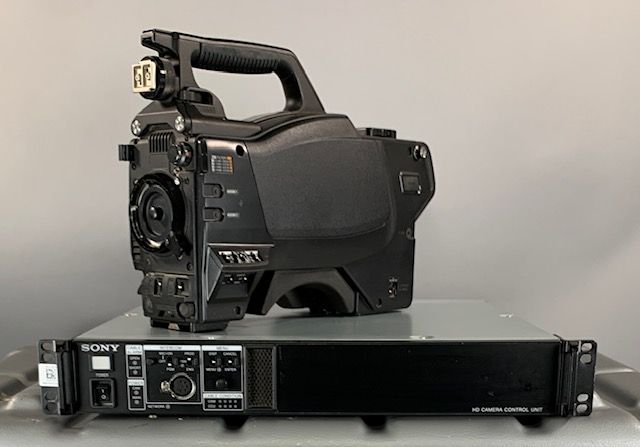

Sony HSC-300R

3-chip 2/3" type CCD
Effective Picture Elements
1920 x 1080
Signal Format
1080i: 59.94/50
1080PsF: 29.97/25 (requires optional HZC-PSF3 software)
720p: 59.94/50
Spectrum System
F1.4 prism system
Lens Mount
Sony bayonet mount
Built-In Filters
CC CROSS, 3200K, 4300K, 6300K
ND Clear, 1/4 ND, 1/16 ND, 1/64 ND
Sensitivity
F10 (59.94 Hz) / F11 (50 Hz) at 2000 lx, 3200K, 89.9% reflectance
Signal-to-Noise Ratio (Typical)
HD: -60 dB (1080i)
Horizontal Resolution
HD: 1000 TV lines
SD: 900 TV lines
Shutter Speed Range
1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000/sec (59.94i mode)
1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000/sec (50i mode)
Modulation Depth
HD: 45% at 27.5 MHz (1080i)
SD: 90% at 5 MHz
Input / Output
Audio Input (Ch 1, Ch 2):
1 x XLR 3-pin, female per channel
For Mic: -60 dBu (may be selected to -20 dBu by menu or HSCU operations), balanced
For Line: 0 dBu, balanced

Mic 1 Input:
1 x XLR 3-pin, female

Return Control Input:
1 x 6-pin

Prompter Output/Genlock input/Return Input:
1 x SDI, 1 Vpp, 75 Ohms

DC Input:
1 x XLR 4-pin, DC 10.5–17 V

DC Output:
1 x 4-pin, DC 10.5–17 V, 0.5 A (max)
1 x 2-pin, DC 10.5–17 V, 2.5 A (max)

Test Output:
1 x BNC

SDI Output:
1 x BNC

Earphone Output:
1 x 3.5 mm stereo mini jack

CCU Connection:
1 x Triax

Tracker:
1 x 10-pin

Intercom:
1 x XLR 5-pin, female

Remote:
1 x 8-pin

Lens:
1 x 12-pin

Viewfinder:
1 x 20-pin
Power Requirements
DC 180 V, 1.0 A (max), DC 12 V, 7 A (max)
Operating Temperature
-4 to 113°F / -20 to 45°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Weight
9.9 lb / 4.5 kg
