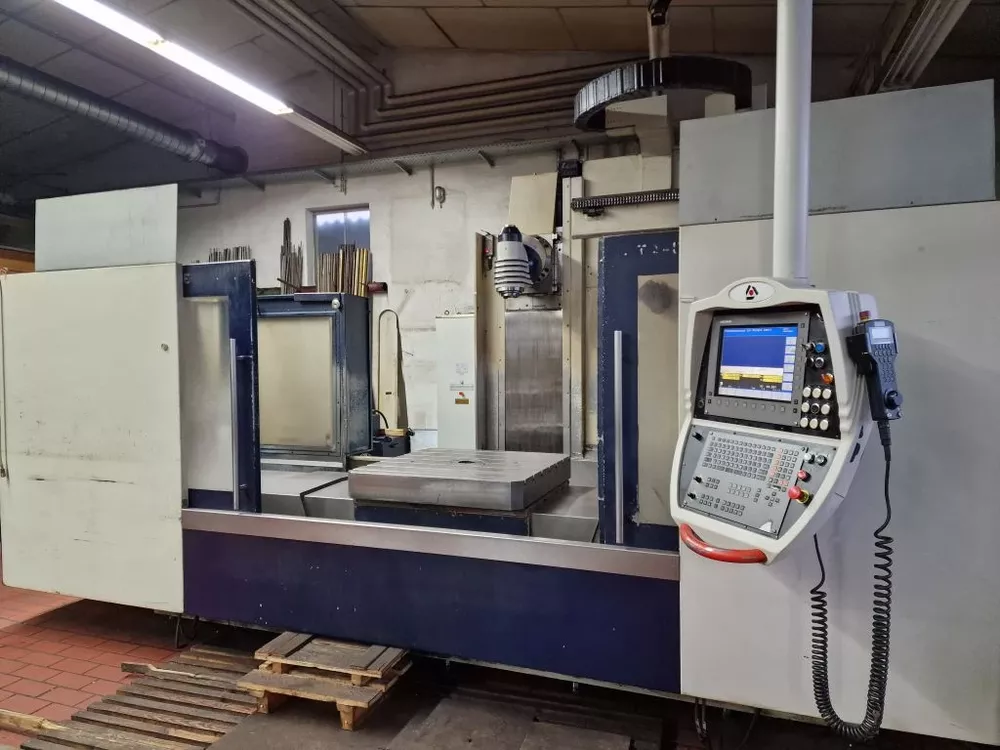

Soraluce TAA-D 25 4000 rpm

X axis travel: 2500 mm
Y axis travel: 1250 mm
Z axis travel: 1000 mm
Rapid traverse X/Y/Z: 25000 mm/min
Feedrate X axis: 10 – 10000 mm/min
Feedrate Y axis: 10 – 10000 mm/min
Feedrate Z axis: 10 – 10000 mm/min
Control: Heidenhain iTNC 530
NC rotary table (4th axis)
Table size: 1000 x 1000 mm
Max table load: 5000 kg
T-slots: 6 x 22 mm H10
Spindle speed: 120 – 4000 rpm
Spindle torque: 479 Nm
Tool holder: ISO 50 DIN 69871 – AD
Drive power: 24 kW
Machine weight: approx. 15000 kg
Internal coolant supply 20 bar
Minimum quantity lubrication system
Chip conveyor
Tool changer: 40 positions
Portable electronic handwheel HR 420
3D thermal expansion compensation
Automatically indexing milling head
Coolant system 150 L tank
Coolant pressure: 5 bar
Coolant flow rate: 50 l/min
Splash guard enclosure
Heidenhain digital drives
Linear roller guides
Linear measuring system
Ball screws X/Y/Z
Automatic lubrication system
