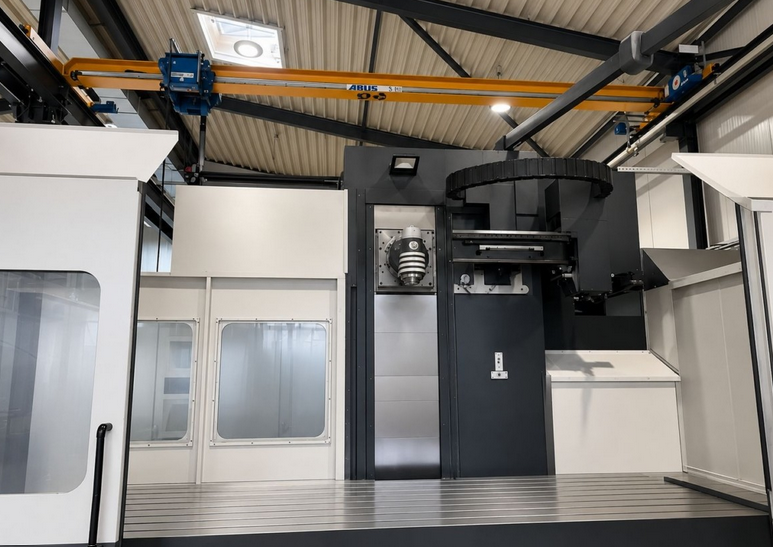

Soraluce TR 35 4,000 rpm

X-Axis Travel: 3,500 mm
Y-Axis Travel: 1,300 mm
Z-Axis Travel: 1,600 mm
Rapid Traverse: 35,000 mm/min
Feed Rate: 16,000 mm/min

Control System: HEIDENHAIN TNC 640
Wireless Handwheel: HR 510
Collision Monitoring System (DCM)
Wireless Touch Probe (M&H)
Through-Spindle Coolant System (5–20 bar)
Full Machine Enclosure

Table Size: 3,800 × 1,200 mm
T-Slots: 7 × 22 H12
T-Slot Pitch: 140 mm

Spindle Speed: 20–4,000 rpm
Spindle Power: 43 kW
Spindle Torque: 900 Nm
Spindle Taper: ISO 50 DIN 69871

Milling Head: Swiveling 2.5° × 2.5°
Universal Milling Head H200
5-axis Interpolation

Tool Changer Capacity: 40 positions

Chip Conveyor System: Included (scraper type)
Additional Chip Conveyors: 3 units
Paper Band Filter with Magnetic Separator

Machine Weight: approx. 24 t
