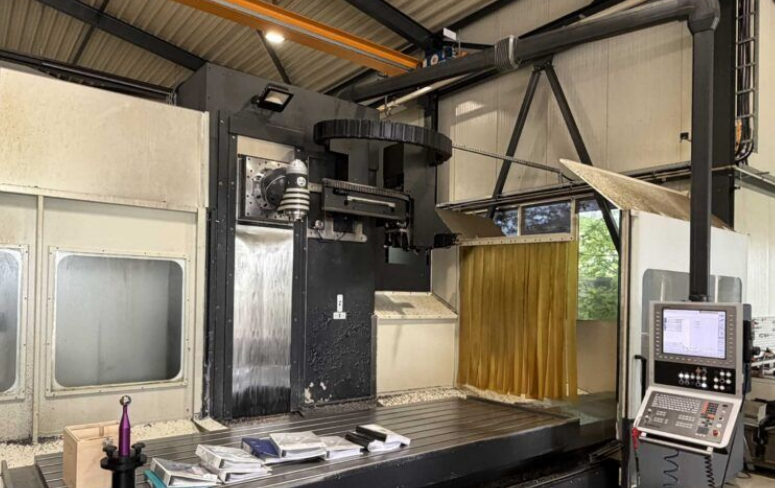

Soraluce TR-35 4,000 RPM

X-Axis Travel: 3,500 mm
Y-Axis Travel: 1,300 mm
Z-Axis Travel: 1,600 mm
Working Feedrate (X/Y/Z): 16,000 mm/min
Rapid Traverse: 35,000 mm/min
Control: HEIDENHAIN TNC 640
Automatic 2.5° × 2.5° Milling Head
Internal Coolant
Portable Handwheel: Heidenhain HR-510
3D Tool Compensation Software
3D Machining Software
5-Axis Interpolation
DCM Collision Monitoring System
Interpolation Turning
M&H Wireless Touch Probe
Table Size: 3,860 × 1,200 mm
T-Slots: 7 × 22 H12
T-Slot Spacing: 140 mm
Maximum Table Load: 9,650 kg
Spindle Speed: 20–4,000 RPM
Spindle Motor Power: 43 kW
Spindle Torque: 900 Nm
Spindle Taper: ISO 50 DIN 69871 AD
Automatic Tool Changer: 40 Tools
Maximum Tool Diameter (Adjacent Pockets): 125 mm
Maximum Tool Diameter (Free Adjacent Pockets): 250 mm
Maximum Tool Length: 400 mm
Maximum Tool Weight: 20 kg
Integral Protective Guards
Double Longitudinal Chip Conveyor
Cross Chip Conveyor
Paper Band Filter with Magnetic Separator
Spindle On Time: 4,222 Hours
Total Power: 55 kVA
Machine Weight: 24,000 kg
