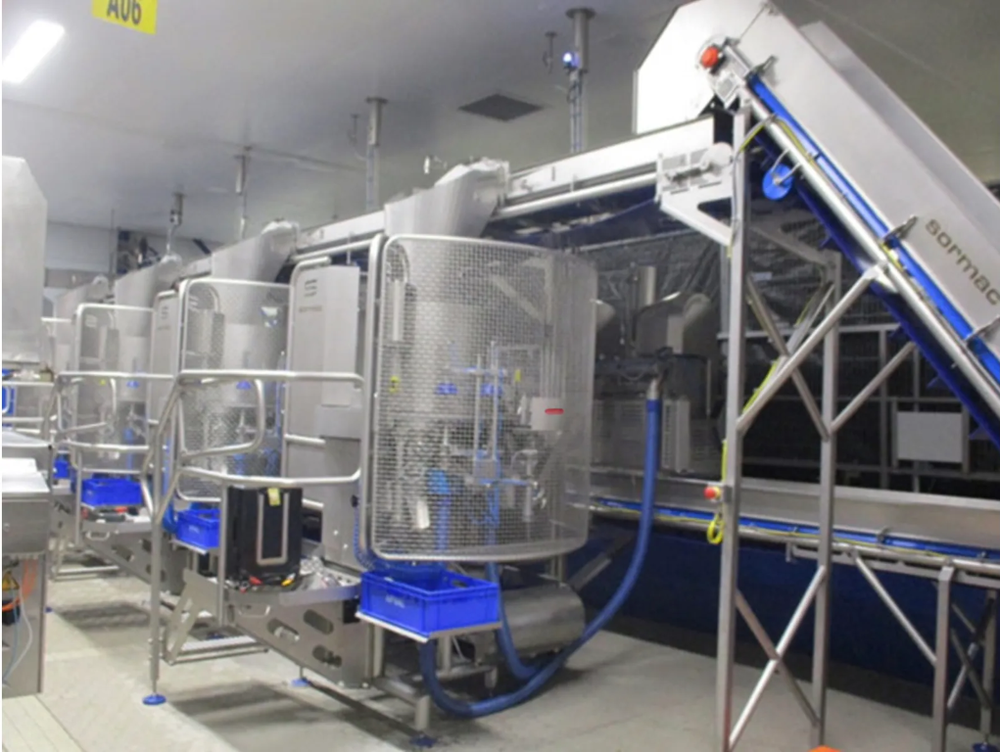

Sormac PO 30, Pepper Decoring Slicing Wedging Line

Complete Sormac bell pepper processing line equipped
with 4x Sormac PO-30 bell pepper coring machines
for the automatic coring and processing of bell peppers

The line consists of the following components:
1. Conveyor belt with carriers, dimensions (W x L): 600 x 3500 mm
2. Distribution belt with 4x pneumatic valves, dimensions (W x L): 600 x 9250 mm
3. Sormac PO-30 coring machines (4 units)
4. Finished product discharge belt, dimensions (W x L): 600 x 10500 mm
5. Vacuum units (4 units) with waste discharge belt, dimensions (W x L): 400 x 9000 mm
6. Central control cabinet

Operation of the PO-30 coring machine:
Station 1: the stem of the bell pepper is cut
Station 2: coring the bell pepper, removing seeds
Station 3: optional: cutting off the cap, the bottom of the bell pepper, or both simultaneously
Station 4: optional: segmenting into 4 pieces (also possible after machine modification, segmenting into 2, 3, 6 or 16 pieces)

Production capacity: 11,200 pieces/h (depending on product, quality, operator)
Product diameter: 60 – 115 mm
Product length: 70 – 140 mm
Functions: coring, cutting, segmenting
Voltage: 400 V (3 + N, 50 Hz)
Power: 6 kW
Year of manufacture: 2020
Compressed air connection value: 6 bar (1600 L/min)
Dimensions (W x D x H): 15000 x 4000 x 3000 mm
