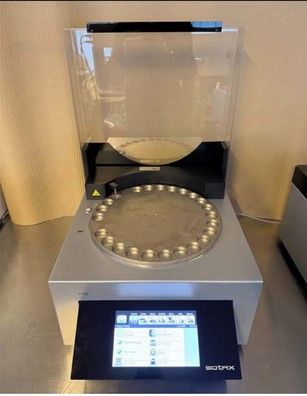

Sotax ‘SmartTest’ ST 50 Tablet Inspection System

This semi-automatic compact unit is designed for fast
and efficient testing of up to 5 physical
parameters: Weight, Thickness, Width,
Diameter / Length and Hardness of virtually all shapes
of tablets, coated tablets and similar dosage forms
in compliance with current Pharmacopeia.
Samples for testing are placed into a rotating carousel
with up to 23 test stations.
It is suitable for connection with software
for 21 CFR part 11 compliance,
data management and reporting.
The unit has a program capacity that can store 100 products
and 20 methods for quick recall.

Measuring Principle
Constant speed: Max. 5.00 mm/sec.
Linear force increase: Max. 200 N/sec.
Integrated Scale (Sartorius)
Weighing range: Max. 50 g
Resolution: 0.1 mg
Measuring Units: mg/g
Thickness
Measuring range: Max. 15 mm
Resolution: 0.01 mm
Measuring Units: mm or Inch
Diameter / Length / Width
Measuring range: Max. 25 mm
Resolution: 0.01 mm
Measuring Units: mm or Inch
Hardness Tester
Measuring range: Max. 800 N
Measuring units: N / Kp / Sc
Accuracy: Better than ± 1N
Throughput 3 to 8 tablets/min.

Electrical Installation: 115-230V, 1 Phase, 50/60 Hz
Space required: 40 x 50 x 28 cm
Weight: approx. 32 kg
