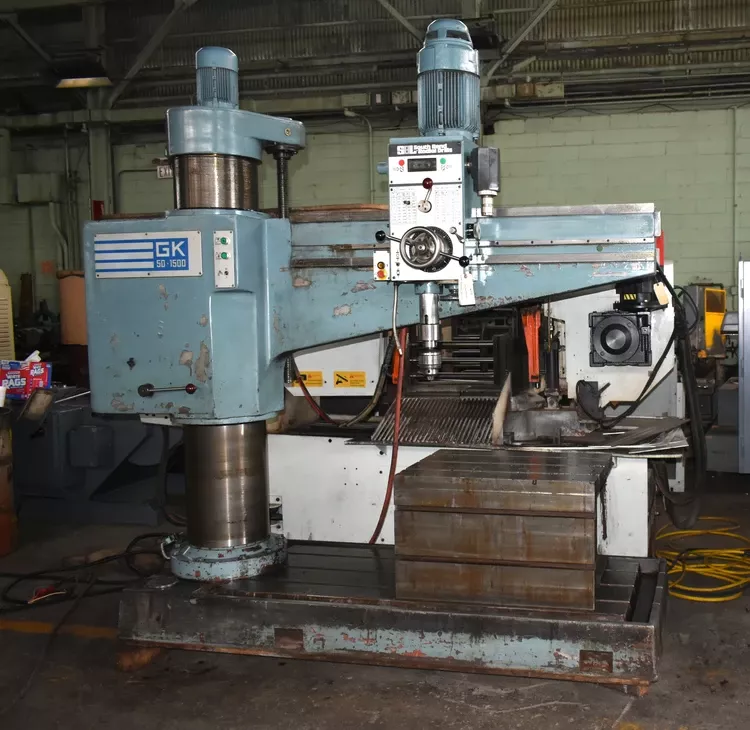

South Bend GK50-1500 1,750 RPM

Arm Length: 59"
Column Diameter: 14"
Power: 4 HP
RPM: 1,750
Weight: 6,900 LBS
Tapping Capabilities
Plain Type Base
Power Arm Elevation
Hydraulic Clamping
T-Slotted Plain Box Table 23.5" x 30.5" x 19.5"
Drilling Capacity, Mild Steel 2"
Drilling Capacity, Cast Iron 2.375"
Tapping Capacity, Mild Steel 2"
Tapping Capacity, Cast Iron 2.375"
Horizontal Head Travel on Arm 48.5"
Vertical Arm Travel on Column 32"
Vertical Spindle Travel in Head 9.5"
Spindle-Radius, Minimum 17.5"
Spindle-Radius, Maximum 66"
Spindle-Nose to Base, Minimum 8.5"
Spindle-Nose to Base, Maximum 51.25"
Base Working Surface, W x L 32.25" x 66.375"
Spindle Nose Diameter 2.375"
Spindle Taper #4 MT
12 Spindle Speeds, Range 40 to 1,750 RPM
6 Spindle Feeds, Range 0.0020 to 0.0138 IPR
Spindle Motor Horsepower 4
Elevation Motor Horsepower 1.5
Extreme Height, Column Above Floor 101"
Extreme Height, Head & Arm Extended 114"
