Johnson, South Bend 45-FW-AC Press 45 Ton

Ref : 2720406-3-CP

Condition : Used

Manufacturer : Johnson, South Bend

Model : 45-FW-AC Press

Pressure : 45 Ton

Year(s) : 1980

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

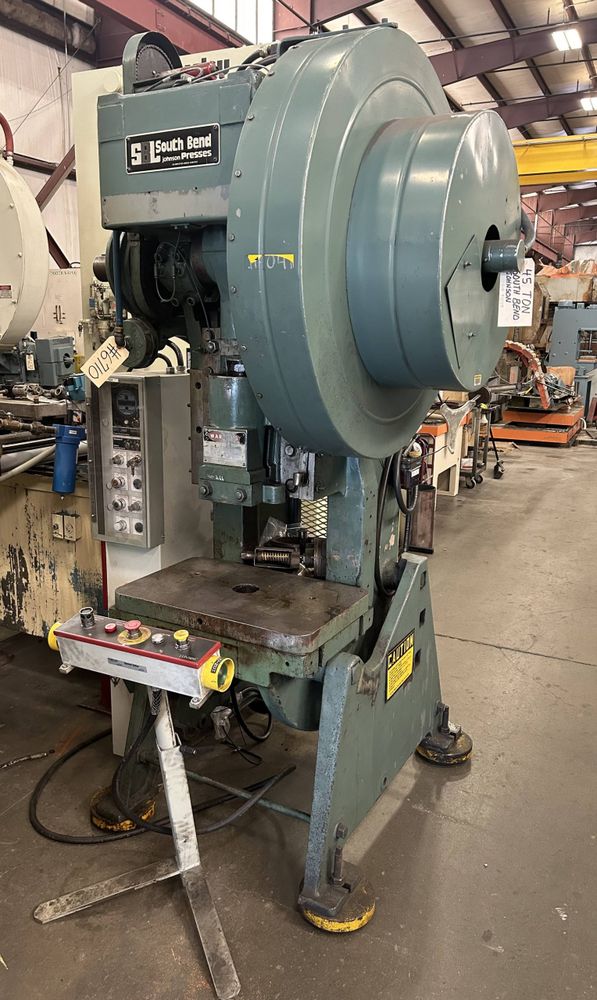

South Bend Johnson 45-FW-AC Press
1980

Capacity: 45 ton
Stroke: 3″
Max shut height to bed: 11.25″
Bed area: 28″ x 18″ (RL x FB)
Speed: 125 SPM
Slide adjustment: 3″ manual
Slide area: 11.8″ RL x 11.4″ FB
Bolster plate: 2.25″ H x 28″ RL x 18″ FB
Distance between uprights: 13″
Distance floor to bed: 30.5″
Clutch: Air clutch & brake
Electrics: 5 HP 870 RPM 240/480V-3-60 motor & Wintriss WPC 2000 press control
Approx. dimensions: 102″ H x 54″ RL x 60″ FB
Approx. weight: 7,000 lbs

Equipped with:
Manual oil lube pump
Floor standing
Cast iron frame
Inclinable
