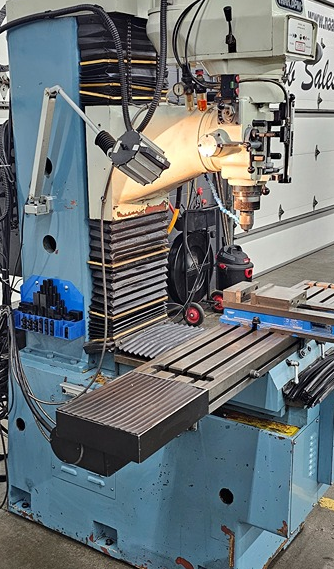

Southwestern Industries PROTO TRAK DPM 3 AXIS Vertical 4,200 rpm

(Control updated 2018)
X-axis travel: 31 in
Y-axis travel: 17 in
Z-axis travel: 25 in
Proto Trak A.G.E. 3-axis CNC control
Manual/CNC operation
Handwheels
Glass scales
Auto lube system
Work light
Bar capacity:
Table size: 10 in x 50 in
Max table load: 1,320 lb
Spindle speed range: 70–4,200 rpm
Spindle motor power: 5 hp
Spindle taper: 40 NST/NMTBA
Quill diameter: 3.937 in
Max quill travel: 5 in
Quill feed rates: 0.002 in/rev
Quill feed rates: 0.004 in/rev
Quill feed rates: 0.006 in/rev
Drilling capacity (mild steel): 1.5 in
Tapping capacity: 1.25 in
Milling capacity: 3 in³/min
Boring capacity: 4.75 in
Kurt power drawbar
6 in Kurt vise
DC servo motors
AC spindle motor
Ball screws
Circular interpolation
Linear interpolation
Machine dimensions: 70 in x 72 in x 89 in
Machine weight: 4,500 lb
10 toolholders included
