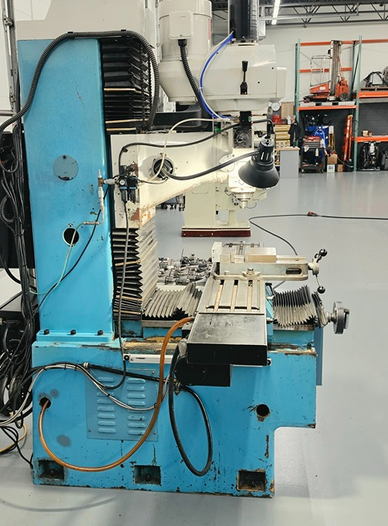

Southwestern Industries PROTO TRAK DPM 3 AXIS Vertical 4200 rpm

X-axis travel: 31"
Y-axis travel: 17"
Z-axis travel: 25"
Control system: Proto Trak A.G.E. 3 Axis CNC
Quill diameter: 3.937"
Spindle taper: #40 NST/NMTBA
Spindle speed range: 70–4200 rpm
Spindle motor power: 5 HP
Spindle center to column face: 17.3"
Quill travel: 5"
Quill feed rates: 0.002 / 0.004 / 0.006 in/rev
Table size: 10" × 50"
Maximum table load: 1,320 lbs
Drilling capacity in mild steel: 1.5"
Tapping capacity: 1.25"
Milling capacity: 3 cubic inches/min
Boring capacity: 4.75"
DC servo motors
AC spindle motor
Ball screws
Circular interpolation
Linear interpolation
Kurt power drawbar
6" Kurt vise
9" CRT monitor
Handwheels
Glass scales
Work light
Automatic lubrication system
Glass scale on quill
Kurt vise model D675
40 taper tool holders and tools (40 pcs)
Machine dimensions: 70" × 72" × 89"
Machine weight approx.: 4,500 lbs.
