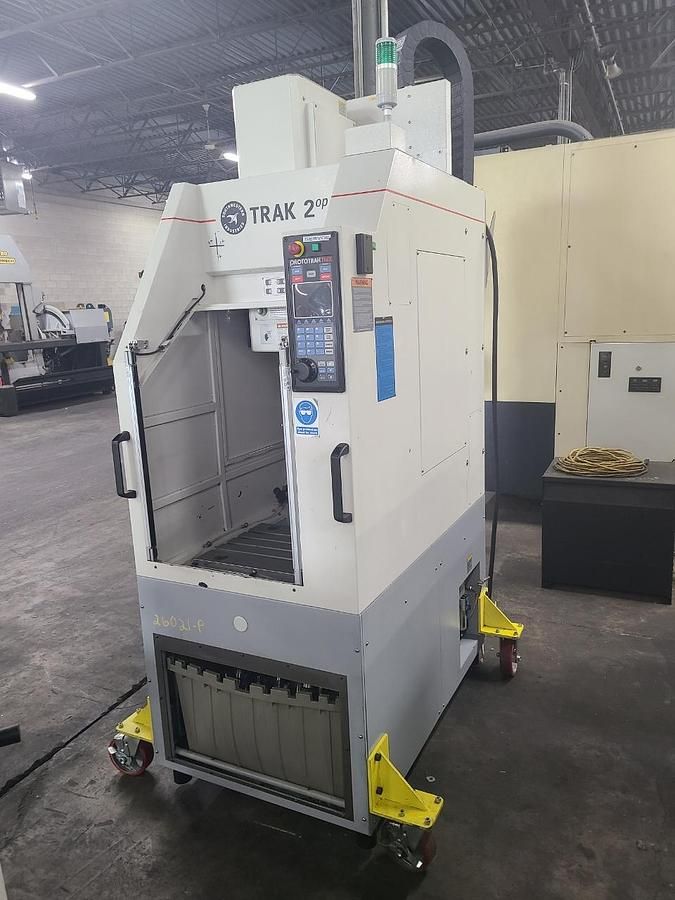

Southwestern Industries TRAK 2OP M10 MILL Spindle center to column face: 14 in

X-axis travel: 14 in
Y-axis travel: 12 in
Z-axis travel: 17 in
Rapid feed: 500 IPM
Control: TMX
5 in touch screen
2 USB ports
Electric handwheel
Rigid tapping
Ball locks built into table
Table size: 18 × 15 in
Table load capacity: 500 lb
Maximum spindle nose to table distance: 20.25 in
Minimum spindle nose to table distance: 2.75 in
Spindle speed: 250–5,000 rpm
Main spindle motor power: 3 HP
Spindle taper: BT30
Quill diameter: 2.2 in
8-position automatic tool changer
16 BT30 tool holders
Mounted on caster wheels
No coolant pump
Power supply: 3 phase, 60 Hz, 440 V
Machine dimensions: 48 × 53 × 99 in
Machine weight: 2,500 lb
