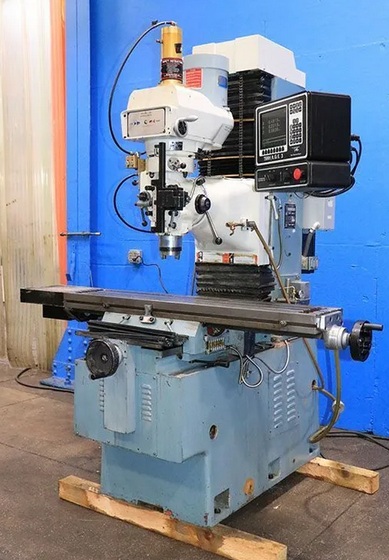

Southwestern Industries TRAK DPM Vertical 5000 RPM

Table size 10" x 50"
X-axis travel 31"
Y-axis travel 17"
Z-axis travel 23.5"
Quill travel 5"
Spindle taper #40 NST
Spindle nose to table 0–24"
Spindle center to column face 17.3"
Head swivel left & right 90°
Spindle speed range 40–5000 RPM
Quill feeds .002, .004, .006 IPR
Maximum workpiece weight 1,320 lbs
Approximate machine dimensions 68"W x 64"D x 95"H
Machine weight 4,100 lbs
Control PROTO-TRAK AGE-3 (updated 2019)
Three-axis simultaneous interpolation including helical canned cycles
Manual mode three-axis DRO
RS232 port & floppy disk drive
Quill digital readout (Z head up & down, not quill)
Square box ways, hardened & ground
Precision ball screws
Coolant system
Automatic lubrication system
Bellows way covers
3 HP spindle motor
Transition freely from 3-axis CNC to manual
