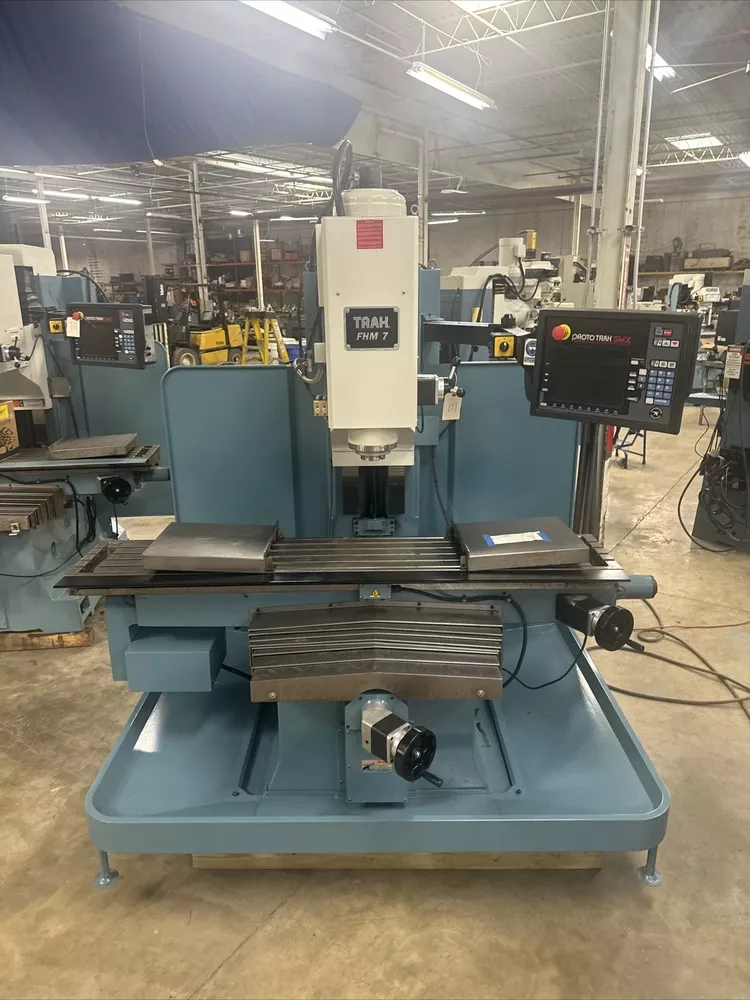

Southwestern Industries Trak FHMSX 7 Vertical 5,000 RPM

X-Axis travel: 60"
Y-Axis travel: 23"
Z-Axis travel: 20.5"
Quill diameter: 5.06"
Table size: 76" x 14"
Maximum spindle nose to table: 21.5"
Spindle center to column face: 23"
Way surface X-axis: Dovetail
Way surface Y and Z axis: Square
Drilling max capacity: 1" dia.
Tapping max capacity: 5/8"
Milling max capacity: 7" 3"/min
Maximum workpiece weight: 2,200 LBS
Height of table from bottom of bed: 38.25"
Power requirement, machine: 220V, 3P, 60Hz, 37.5 FLA
Power requirement, control: 110V, 1P, 15A
Spindle speed range: 200 - 5,000 RPM
Spindle motor power: 7.5 HP
T-slots: 4 x 16mm x 63.5mm

Prototrak SMX CNC control
Power drawbar
Programmable E head
Automatic lubrication pump
Auxiliary function hardware
Limit switches
