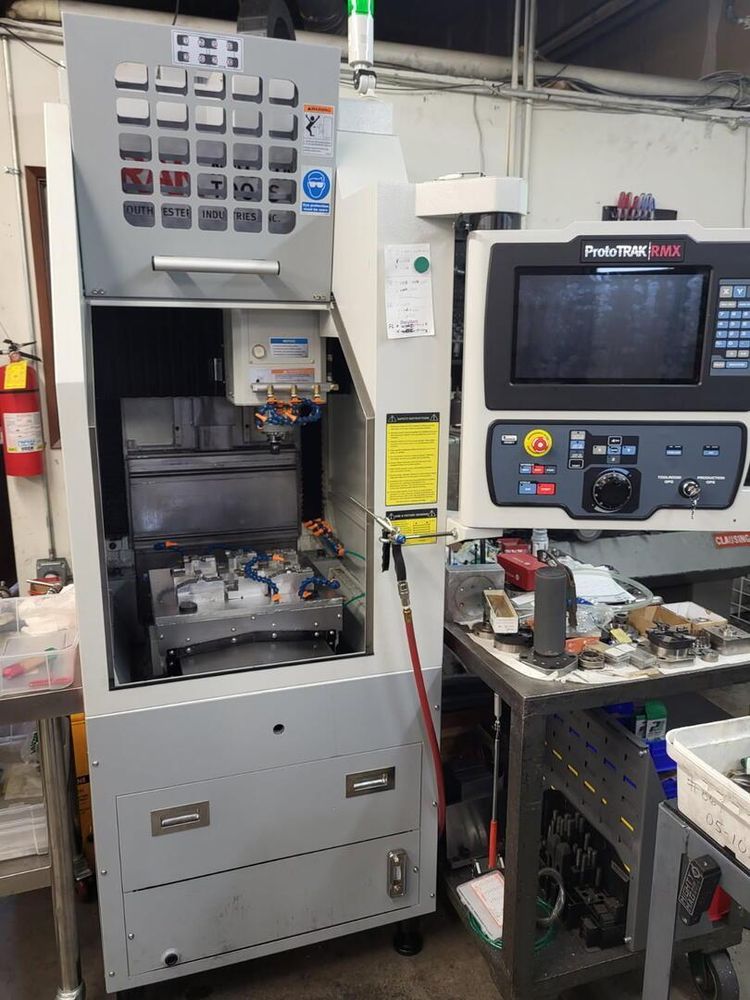

Southwestern Industries Trak VMC 2 3 Axis

X Axis Travel: 14″
Y Axis Travel: 12″
Z Axis Travel: 17″

Control: Prototrak RMX CNC
Table Size: 18″ x 15″
T-Slots: 4 x 0.629″ x 2.480″

Spindle Taper: 30 Taper
Spindle Speed Range (Production Ops): 50 – 10,000 RPM
Spindle Speed Range (Toolroom Ops): 50 – 5,000 RPM
Spindle Nose Diameter: 2.2″
Spindle Motor Peak: 4.5 HP
Spindle Motor Continuous: 3 HP

Rapid Traverse X, Y, Z: 400 IPM (Toolroom Ops)
Rapid Traverse X, Y, Z: 600 IPM (Production Ops)

Maximum Workpiece Weight: 500 lbs
Spindle Nose to Table Min Distance: 2.75″
Spindle Nose to Table Max Distance: 20.25″
Spindle Center to Head Casting Face: 15.7″
Table Height from Bottom of Bed: 34″

Tool Holder Type: BT 30
ATC Tool Capacity: 8
Maximum Tool Weight: 8 lbs
Maximum Tool Diameter: 2″
Tool Carrier Speed: 1.2 – 1.4 sec front to back
Tool Selection System: Shortest path
Tool Clamping Force: 850 – 1,000 lbs

Power Requirements: 208V, 3P, 30A
Power Requirements: 480V with transformer options, 3P, 15A

Footprint (W x L): 30.5″ x 52″
Overall Length with Electrical Cabinet Open 180°: 113.5″
Length with Pendant Rotated 90°: 88.25″
Min Machine Height: 93″
Max Machine Height: 101.5″
Weight Net / Shipping: 2,825 / 3,175 lbs

Coolant Capacity: 15 gal
Coolant Pump Power: 1/4 HP
Air Requirement: 2.5 CFM, 18 SCFM
Lubrication Pump Capacity: 2 liters
