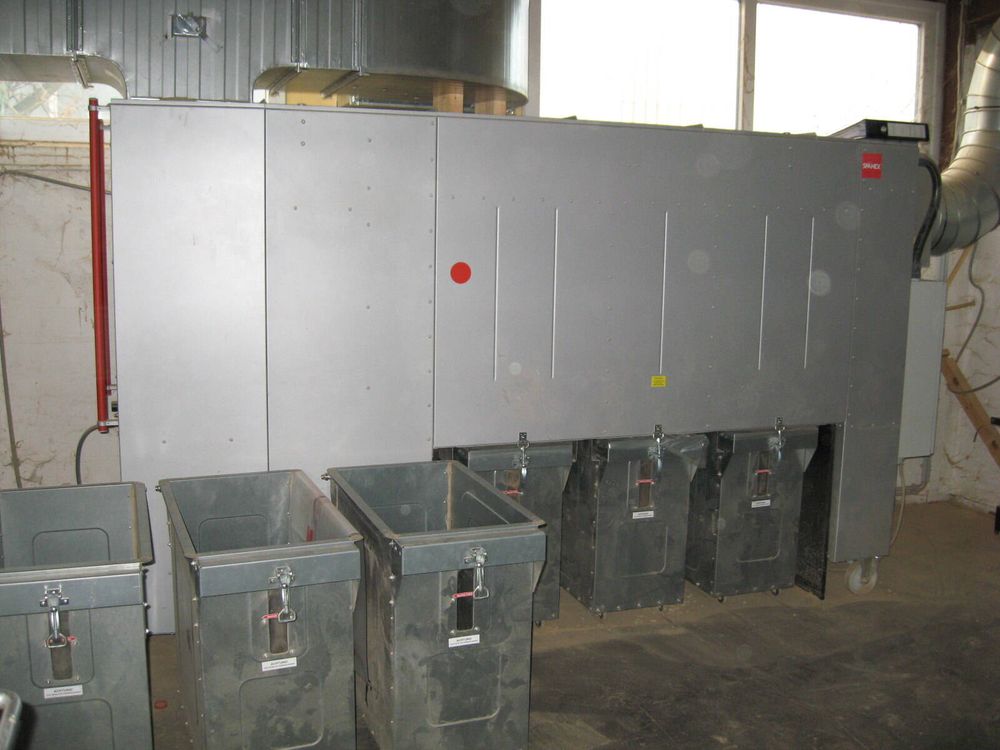

Spänex SMU

Mobile wood dust extraction / chip extraction
Volume flow: 8500 m³/h
Nominal volume flow: 7130 m³/h
Sound pressure level max.: < 70 dB
Negative pressure: Pa 2700
Motor 11 kW, 400 V, 50 Hz, 3,000 rpm.

Extraction connection on the right
Suction nozzle Ø 355 mm
Filter area 28 m²
3 chip containers, each with a capacity of 165 litres, in the extraction system
with 3 replacement containers (a total of 6 containers, each with a capacity of 165 litres)
Machine dimensions approx. 3600 x 900 x 1965 mm LxWxH
Weight 900 kg
