Speed ​​3015

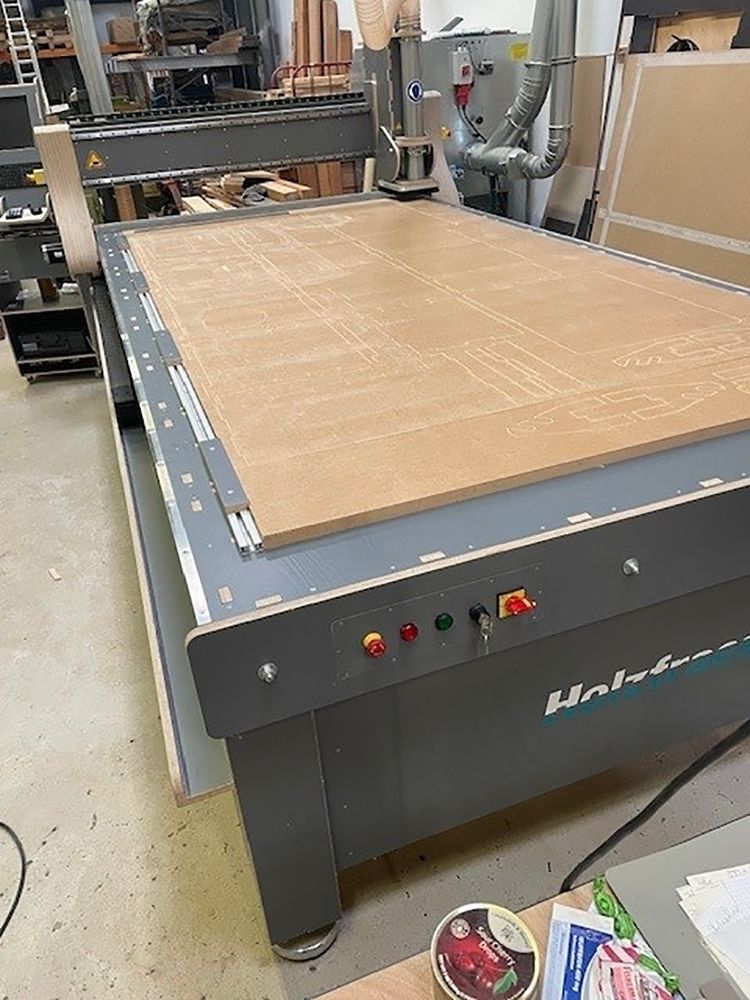

BESSLER CNC wood milling machine Used machine
Motor specifications: 380 V - 50 Hz
including vacuum table with vacuum pump 100m3/h
Weight approx.: 1800 kg

Bessler - Speed ​​wood router in 18mm
Koskisen Grey consisting of a milling table (X-axis), a portal (Y-axis), a Z-axis and a substructure filled with polymer concrete.
Milling bed in 19 mm MDF as a sacrificial plate.

Mechanism set:
consisting of profile guides KPF-S 20 including carriage.
Ball screw for the Z-axis. Precision rack and pinion gears, with a
Gear quality 8.
Profile rails for mounting the limit switches. All components are assembled.
Adjustable machine feet.

Control set:
consisting of a planetary gear system with a reduction ratio of 1:5
Stepper motors with 9.2 Nm, 4 A. High-performance power stages, each with 80 V, and a 70 V power supply.
and ring core transformer, completely pre-assembled in the control cabinet.
Sensors for each axis.

CE-compliant protective device thanks to a moving extraction system.
High-frequency spindle with 2.2kW including union nut, frequency converter,
Mains filter, braking resistor, and collet set.

21.5-inch built-in monitor, including mini PC with Windows and Rhino CAD software
5.0, G-code generator Estlcam, control software Beamicon2, and mouse and keyboard, pre-installed in an ergonomic desk.
Tool length sensor for determining tool length and changing the active zero-point shift.
