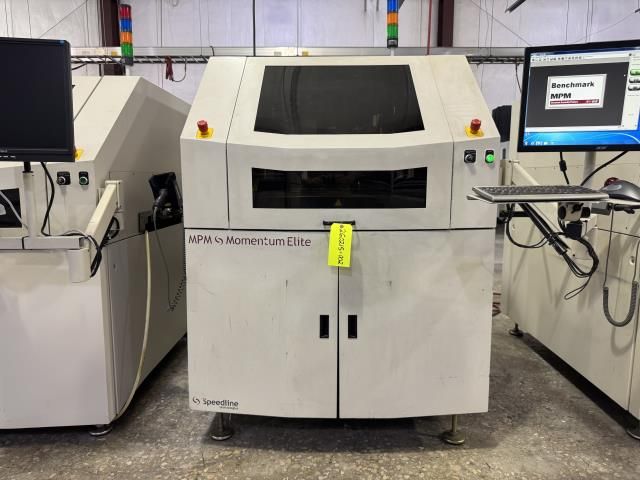

Speedline MPM Momentum Elite

Vintage : JAN 2012

Details
Paste Dispenser
Understencil Cleaner
200-240V

Specifications ( See Details above for installed options )
The MPM® Momentum® Elite is the top-performer of the Momentum series,
boasting the highest throughput and shortest cycle times of all. Its vision system is
driven by servos for speed, and it’s configured with a highly-efficient
triple track rail system featuring an input buffer, a central processing section,
and an output buffer.

*Board Handling
Maximum Board Size (X x Y) 609.6 mm x 508 mm 24” x 20”
Staging Mode - Momentum Elite 457 mm x 508 mm (18” x 20”)
Minimum Board Size (X x Y) 50.8 mm x 50.8 mm (2” x 2”)
Board Thickness 0.2mm (0.008") to 5.0mm (0.20”),
up to 6.0 mm(0.24”) without top clamp foils

*Print Parameters
Maximum Print Area (X x Y) 609.6 mm x 508 mm (24" x 20")
Print Gap (Snap-off) 0mm to 6.35 mm (0" to 0.25")
Stencil Frame Size 737 mm x 737 mm (29" x 29")

*Vision
Vision Field-of-View (FOV) 106mm x 8mm
Fiducial Types Standard Shape Fiducials
Camera System Single Digital Camera (Look Up/down vision)

*Performance
Total System Alignment 12.5 microns
Accuracy and Repeat-ability ±0.0005") at 6 sigma, Cpk of greater than or equal to 2.0*

*Facilities
Power Requirements 200 to 240 VAC Single Phase 50/60Hz 15A
Air Supply 100 PSI at 4 CFM
Dimensions 1675.5mm (65.96") W x 1593.1mm (62.72") D x 1638.4mm (64.5") Tall
Machine Weight 899kg (1982 lbs)
