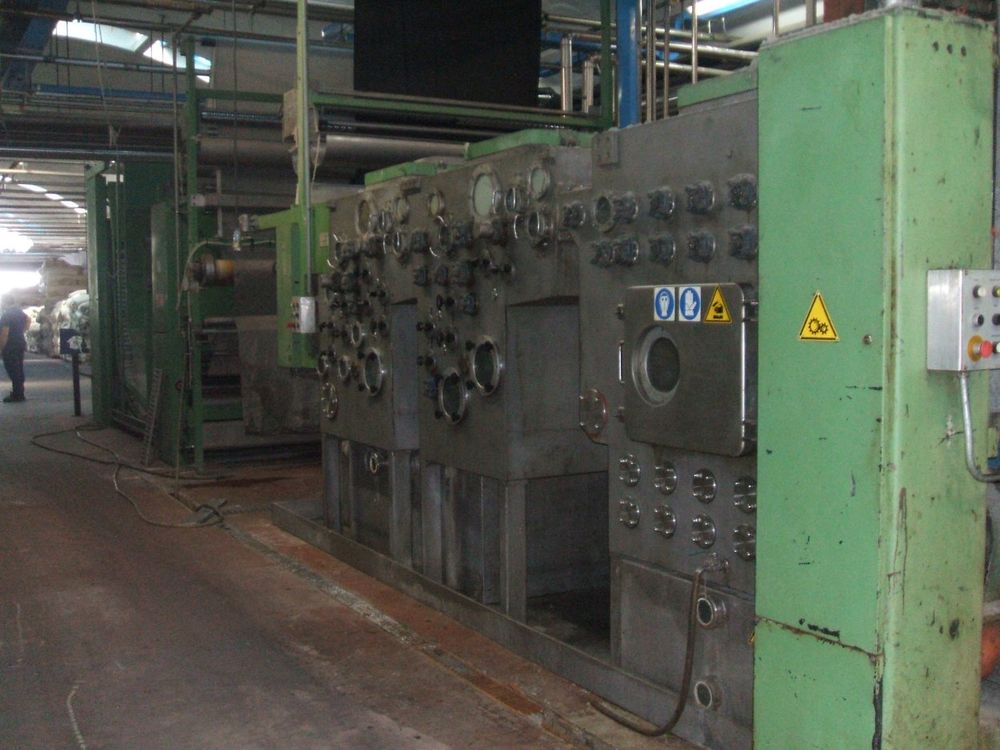

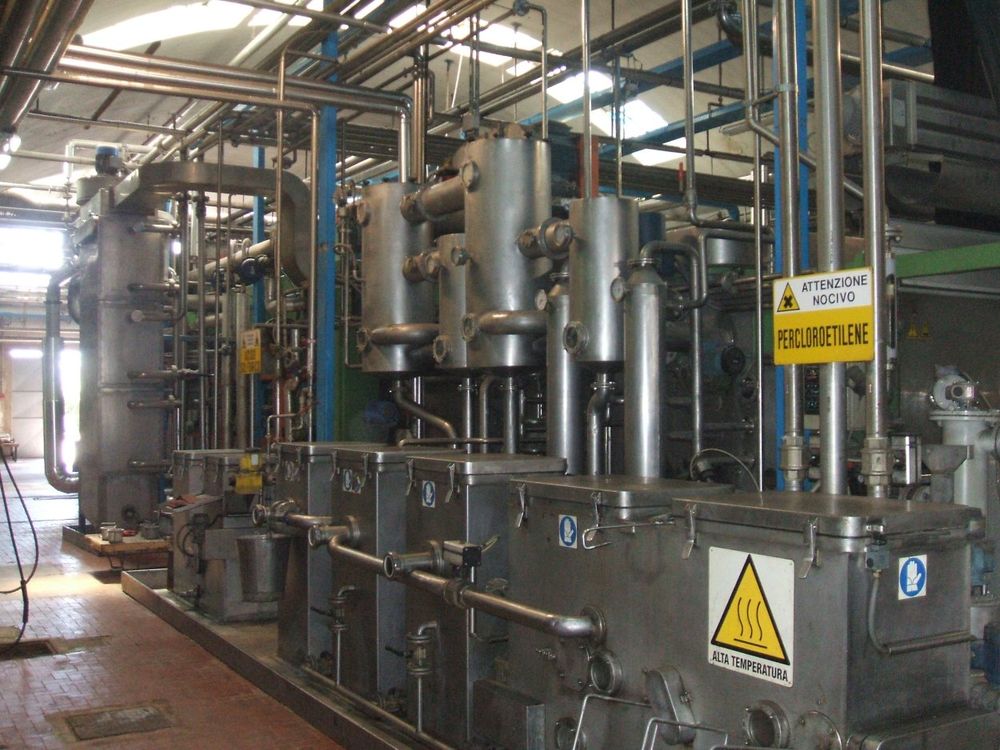

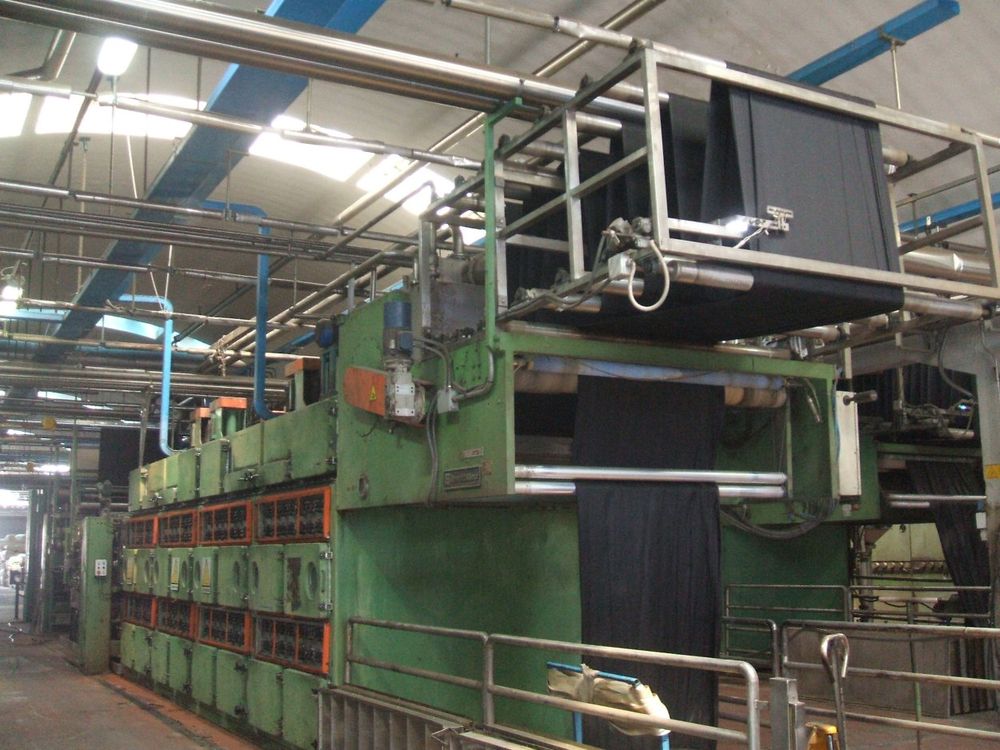

Sperotto rimar CARBOSOL 220/1000/1500WS Carbonizing & washing line

Cylinders table width 2200 mm.
w.width 2000 mm.
max working speed 8-80 m./min.
evaporation capacity drying chambers-PER 1500 kgs./h.
380 Volts/50 Hz.

Steam: required pressure min.6 bars - max consumption 1900 kgs./h.
Compressed air: required pressure min.6 bars - max consumption 50 l/h.

Cooling water:
use quantity 65 cubic meters /h.
required pressure min.3 bars.
Input temperature max 28°C.
Output temperature 40-45°C.

Total weight:
dry 58.400 kgs.
in running condition: 77.000 kgs.

Consumptions refers to 100% wool fabric weighing 510 g/ml with width 1700 mm., for a production:
Washing 1500 kgs./h.
Washing and carbonizing 1000 kgs./h.
