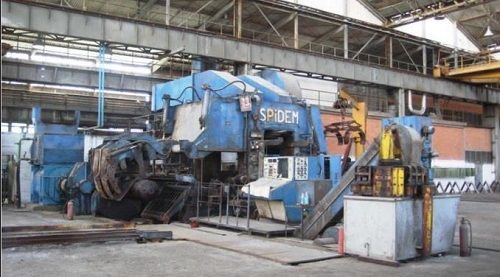

SPIDEM 4-HI ALUMINUM REVERSING COLD ROLLING MILL (Revamped 2022)

Width 750mm - 1800mm
Entry thickness 10mm
Exit max/min thickness 0.2mm
Line speed 500 mpm max
Max coil weight 11,000 kg
Work roll face 1800mm
Work rolls diameter 410mm
Backup rolls diameter 980mm
2 x 1,100 kW motor drive
Uncoiler coil ID 600mm
Uncoiler coil OD 1850mm
310 kW motor drive (uncoiler)
Recoiler coil ID 600mm
Recoiler coil OD 1850mm
1,100 kW motor drive (recoiler)
Working direction right to left
Automatic AFC & gauge control
Bending cylinder
Seltek (new) X-ray thickness measurement
Complete new controls, electric & hydraulics
Entry & exit coil rack
Edge trimmer & chopper
Belt wrapper
Rolls spares
CO2 fire fighting system (manual control)
Filtration system
Dismantled
