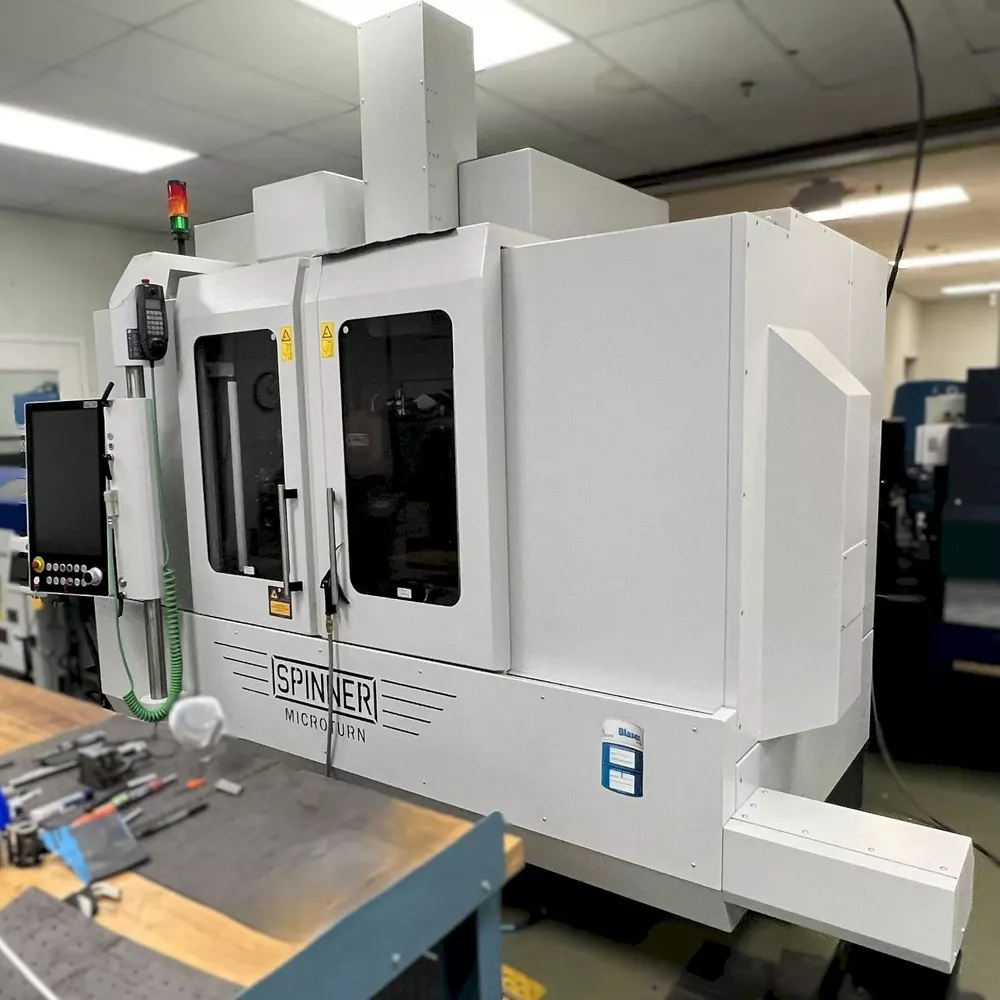

Spinner Microturn 52 5 Axis

X travel 600 mm
Z travel 350 mm
Y1 Turret travel +/- 50 mm
Y2 Milling Spindle travel +/- 50 mm
B Rotary 180 degrees
Control SIEMENS 840D
Swing diameter 608 mm
Turning diameter max 150 mm
Turning length max 250 mm
Feedrates Rapid traverse X-Axis 24 m/min
Feedrates Rapid traverse Y-Axis 15 m/min
Feedrates Rapid traverse Z-Axis 24 m/min
Spindle Bore Capacity 52 mm
Spindle Speed 5,200 rpm
Spindle Performance (S6 40%) 16.5 kW
Spindle Torque (S6 40%) 110 Nm
Spindle Nose DIN 55026-A6
B-Axis Milling Spindle Speed max 12,000 rpm
B-Axis Milling Spindle Performance (S6 40%) 9 kW
B-Axis Milling Spindle Torque (S6 40%) 21 Nm
B-Axis Milling Spindle Swivel Angle +/- 180 degrees
B-Axis Milling Spindle Positional Measurement Rotary Encoder
B-Axis Milling Spindle Clamping Hydraulic
Turret Stations 12 / BMT45
Turret Live Tooling Speed 8,000 rpm
Turret Performance (S3 25%) 4.3 kW
Turret Torque (S3 25%) 13.6 Nm
Tool Magazine Station Quantity 72
Tool Magazine Holder Type HSK40
Tool Magazine Tool Length max 105 mm
Tool Magazine Tool Diameter max 88 mm
Tool Magazine Tool Diameter max - Adj Pocket Empty 100 mm
Machine Dimensions (LxWxH) 3030x2840x2890 mm
Machine Weight 7,700 kg
Operating Voltage 3 x 400V (+/-10%)
Main Frequency 60 Hz (+/-2%)
Electrical Connection TN network (5-wire)
Dual spindles
12-station turret with live-tools
Full 5-axis
Rotating 12,000 rpm B-axis milling spindle
