Spinner Siemens 840 D Variable Speed TC 67 L 2 Axis

Ref : 2715561-3-MT

Condition : Used

Manufacturer : Spinner

Controller : Siemens 840 D

Spindle Speed : Variable Speed

Model : TC 67 L

Nb Of Axis : 2 Axis

Year(s) : 2000

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

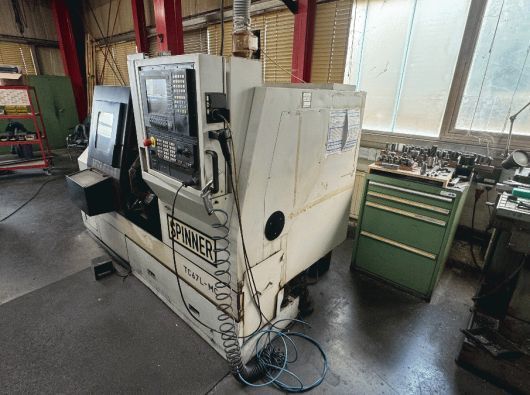

Spinner TC 67 L
Year of manufacture: 2000

Control: Siemens 840 D
Tool turret: 12 positions, VDI 30
Max. turning diameter: 300 mm
Swing diameter over bed: 450 mm
X-axis (cross slide) stroke: 221 mm
Z-axis (saddle) stroke, max. turning length: 590 mm
Machine weight: approx. 3750 kg
Dimensions approx.: 2,500 x 1,450 x 1,700 mm

Accessories:
Laser measuring unit has been replaced
Collets as shown in the photo are included
3-jaw chuck, see photo is also included
