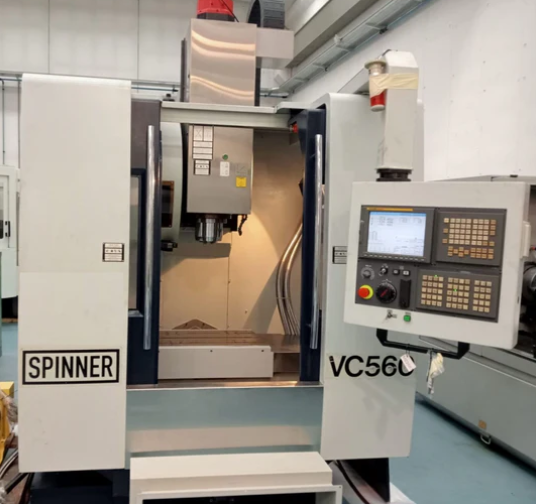

Spinner VC-560 3 Axis

X-Axis Travel: 560 mm
Y-Axis Travel: 410 mm
Z-Axis Travel: 410 mm
Rapid Traverse Rate: 48 m/min
Control Type: SPINNER-FANUC
Number of Axes: 3
Spindle Taper: SK40
Spindle Speed Range: 0–12000 rpm
Tool Changer Capacity: 24
Max Tool Diameter: 77 mm
Max Tool Diameter with Adjacent Pockets Free: 125 mm
Max Tool Length: 200 mm
Max Tool Weight: 5 kg
Tool Change Time: 1.3 s
Table Length: 650 mm
Table Width: 410 mm
Number of T-Slots: 3
T-Slot Width: 14 mm
Max Table Load: 250 kg
Total Power Requirement: 30 kW
Machine Length: 3000 mm
Machine Width: 2000 mm
Machine Height: 2500 mm
Machine Weight: 4000 kg

Features / Equipment
3-axis vertical machining center
Stepless spindle speed control
