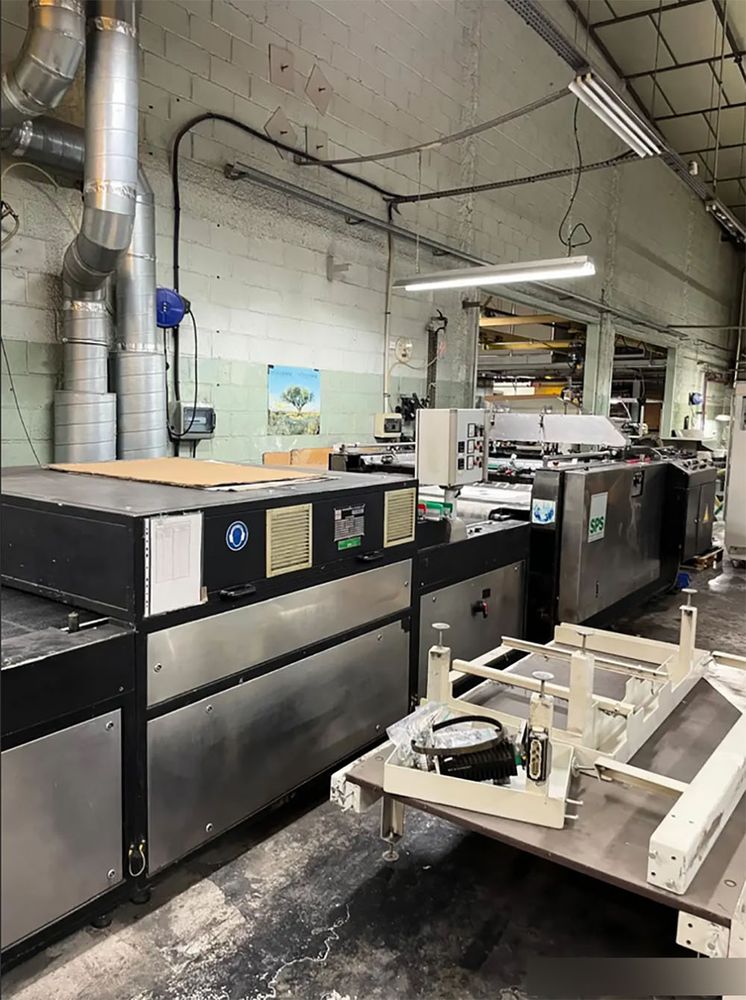

SPS Vitessa G2 + Autostack Spot varnish screen

• • paper/process specifications (manufacturer)
• • paper delivery: 750 × 1050 mm
• • minimum print size: 300 × 430 mm
• • maximum print size: 730 × 1030 mm
• • clamping width: 10 mm
• • pressure end: 10 mm
• • minimum paper weight: 115 g/m²
• • maximum paper weight: 480 g/m²
• • maximum thickness: 70–800 µm
• • process: screen printing — sps rehmu
• • electrical & pneumatic
• • power supply: 3×400 v + pe, 50 hz
• • vitessa power: ~3×40 a / ≈9.0 kw (at (to be confirmed)
• • autostack power: 3×10 a / 1.0 kw (to be confirmed)
• • air vitessa: 6 bar / ~450 l/min
• • air autostack: 6 bar / ~300 l/min
• • capacity
• • max autostacker load: 850 kg
