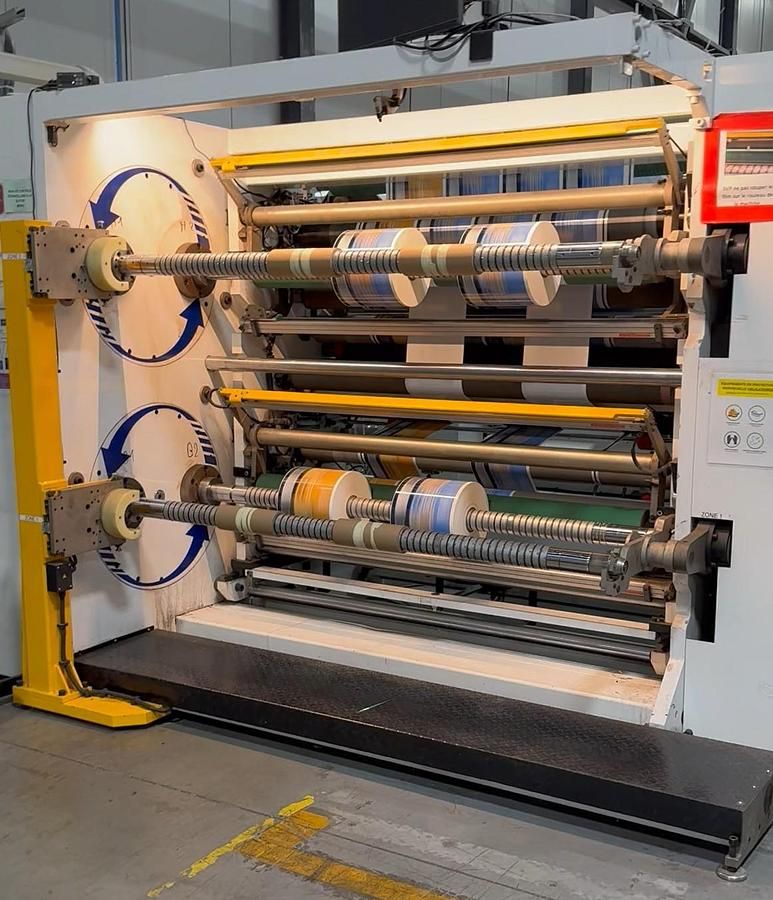

SRC 63" 600 Duplex Turret Slitter Rewinder

63" Wide SRC Systems Ltd. Model 600 Duplex Turret Slitter Rewinder
Shaftless floor pick up unwind stand with 3" & 6" combination cam chucks
Unwind diameter: 40" maximum
BST web guide
Mario Cotta pneumatic shear slitting knife holders,
appx 10 included. Male knives mounted on tracks for smooth placement.
Female knife positioning system, males are set manually..
Razor clip on attachments for razor slitting
Minimum slit width: 2"
Max mechanical speed: 600 mpm (appx 2000fpm) material dependent
Rewind is a duplex turret system with a sliding carriage design.
The rewind shafts are 3" diameter ball lock differential slip shafts
with 25mm wide ball lock segments. The lay on rollers are mounted
to the sliding carriage system with pneumatically controlled pressure settings.
Rewind diameter: 24" maximum
Laser core alignment
Finished roll push off system
Rotating unloading tree, lowers to pallet level.
Cross cut system at end of run
Dual oscillating coreless trim winders for edge trim
Yaskawa drives
Omron motion controller
