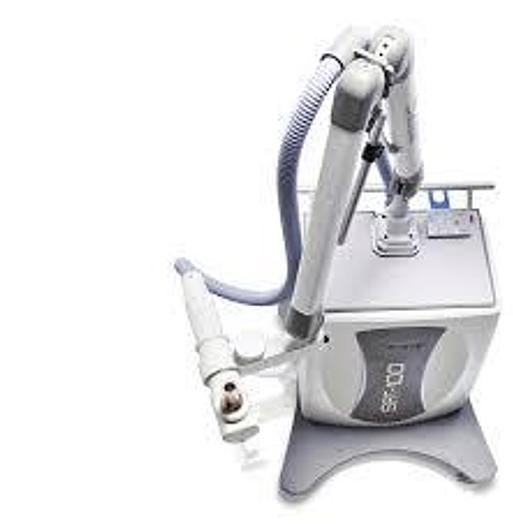

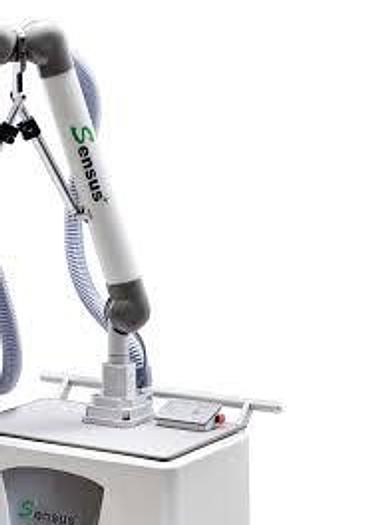

SRT-100 Superficial Radiation Therapy

Manufacturer Sensus
RAD Check – Pre-Treatment Energy Verification
High Frequency Inverter Technology
Radiation Fields Precisely Defined
Physicist Calibrations are Stored in the System
Al Filters Automatically Placed at X-Ray Tube Port
ASRT Approved CEU Program
Applicator Sizes Displayed
Power Lamp
Key Switch
X-Ray Indicator
Control Panel Warning Label
Start Switch
Stop Switch
Emergency Off Switch
Timer Displays
Timer Reset Switch
Exposure Time Control
kV mA Selection
LCD Display
Physicist Energy Measurement Procedures
Auto Al Filter Change Indicator
Automatic Warm-up Status
Pre-treatment Status
Applicator ID
Accumulated Dose

Specifications:
Generator
Type: Constant potential HV
Input Line: 120/230 VAC
Applicators/Cones
Included standard set of applicators: 1.5cm, 2cm, 2.5cm, 3cm, 4cm, 5cm diameter at 15cm SSD (source-to-skin distance)
Optional size treatment applicators: 1.0 cm, 2 cm, 2.5 cm, 4.0 cm, 7.3 cm diameter at 15 cm SSD 10 cm, 12.7 cm diameter at 25 cm SSD
Keloid Applicator Set: 7.3cm diameter at 15cm SSD, 10cm and 12cm diameter at 25cm SSD, 18cm diameter at 30cm SSD
Replaceable safety contact shields
Applicator size specific
Visibility of treated area
X-ray Tube
Metal-ceramic Water-cooled Tungsten target
End grounded
Rating: 100 kV/10 mA, 40 kV/30 mA, 1000 W continuous dissipation
Focal spot size: 5 mm x 5mm
Base Unit Assembly
Base space requirements: 30” x 30”
Vertical arm travel: 57”
Horizontal arm travel: 49”
X-ray tube movement: V&H 180 degrees
Integrated modular components: Input power, HV generator, heat exchanger
Operator Control Console
Can be located up to 100’ (30 meters) from base unit Service mode for system set-up and calibration (key entry)
RAD Check
Direct radiation measurement of output
Pre-treatment verification
Three Treatment Techniques
100 kV at 8 mA, 2.0 mm Al. HVL
70 kV at 10 mA, 1.0 mm Al. HVL
50 kV at 10 mA, 0.45 mm, Al. HVL
X-ray output is 600 cGy at 15 cm SSD/100kV
System Weight
350 lbs. (160 kg)
Automatic Filter Change
Based on KVMA Selection, the system will automatically select the proper filter –
no human error, no braking, no bending, or incorrect size.
Automatic Warm Up Procedures
Automatically activated from time of last exposure
Control Panel
The control console provides the controls and indicators to set up SRT exposures
and to initiate, monitor, and terminate them.
It also permits entry of system calibration values by a radiation physicist.
The control console is located remotely from the x-ray base unit.
