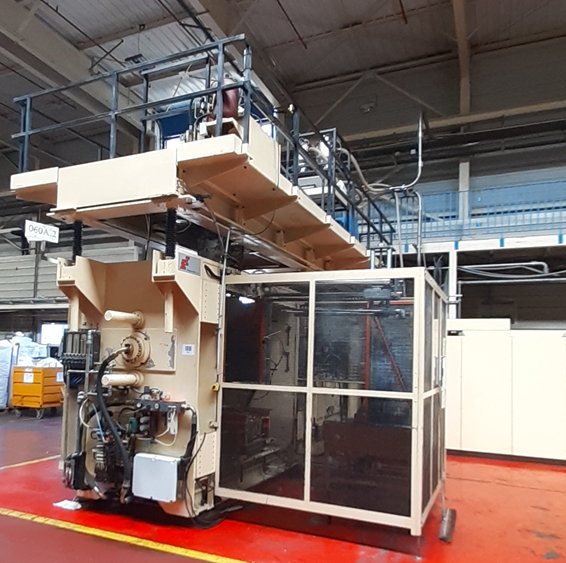

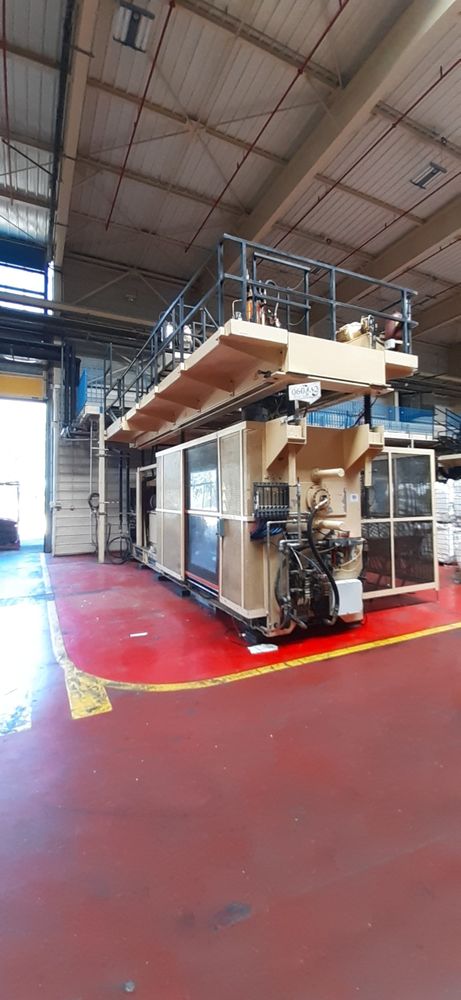

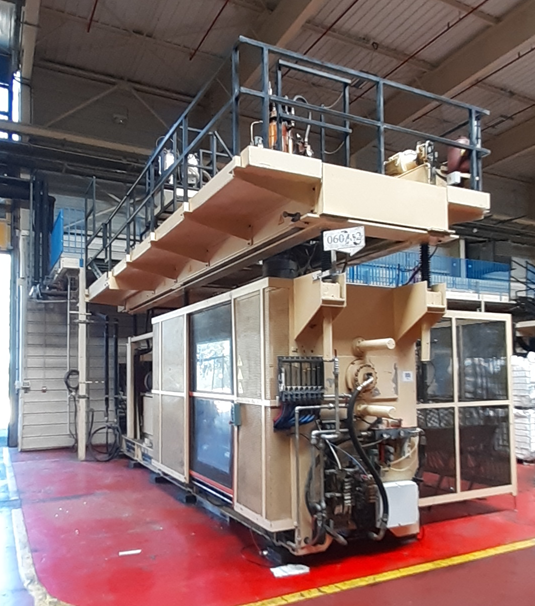

ST Soffiaggio Tecnica Meico ST TA60
Ref :
2780560-6-MT
Condition :
Used
Manufacturer :
ST Soffiaggio Tecnica Meico
Model :
ST TA60
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Closing force: 60T.
Platen dimensions: 960 x 800 mm.
Platen opening: min. 600 mm – max. 1300 mm.
Opening stroke: 700 mm. Vertical platform stroke: 300 mm
Max. mold width: 960 mm. Max. mold height: 1235 mm.
Min. mold thickness: 620 mm.

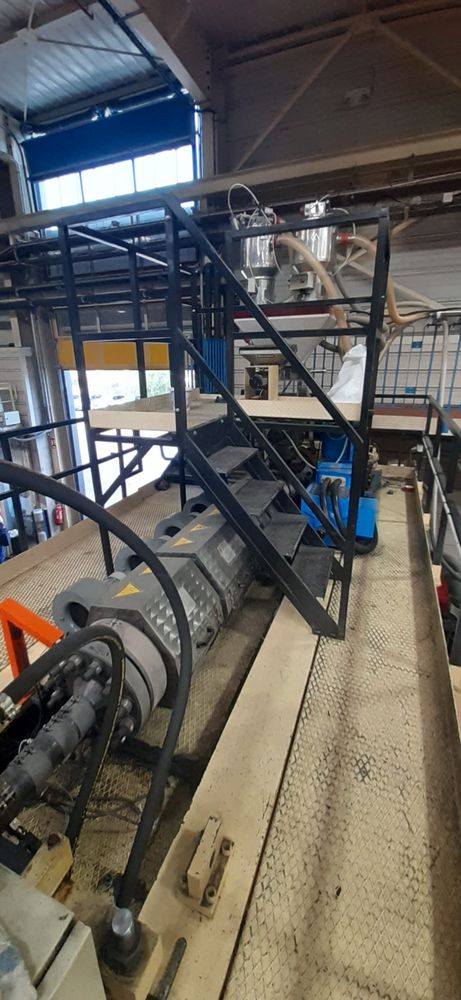

Screw diameter: 120 mm. LD 24
Mixing nozzle.
Extrusion capacity: 350 kg HDPE.
Motor power: 167 kW.
Heating zones: 7.
Heating power: 61.4 kW.

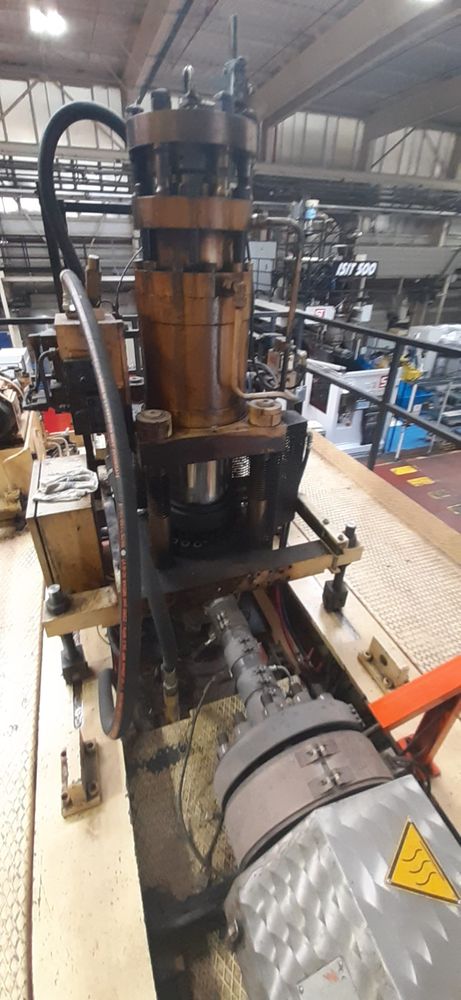

Accumulation capacity: 8 L. Max.
accumulation weight: 6.1 kg HDPE.

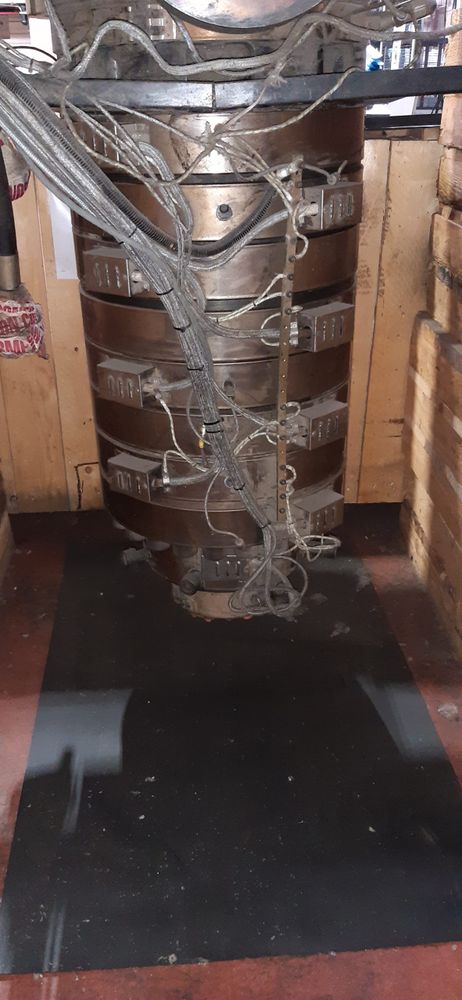

Die diameter: min. 100 mm – max. 220 mm.
Number of parison regulation points: 100.
