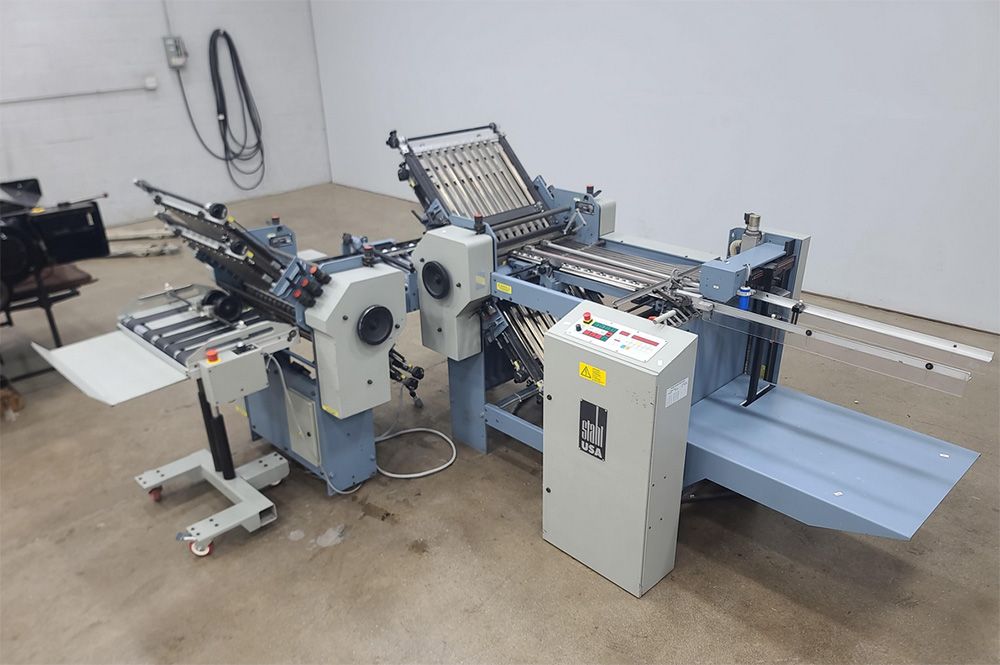

Stahl 1220C-4-8-PG-2

Line Configuration:
Pile feed system
4-buckle folding plates (primary unit)
8-page right-angle folding unit (PG-2)
Delivery system

Main Machine:
The Stahl 1220C operates with an automatic pile feeder that delivers sheets into the buckle folding section
for parallel folds before transferring into the right-angle unit for additional folds.
This configuration allows the machine to produce up to 8-page signatures in a single pass.
The system is designed for continuous operation with consistent sheet control and accurate fold alignment.

Features :
Pile feeder for continuous high-volume production
4-buckle plate primary folding section
Right-angle unit for 8-page folding capability
Adjustable folding plates for various configurations
Heavy-duty construction for production environments

Typical Applications :
Signature folding for book production
Brochures and marketing materials
Commercial print finishing
Bindery folding operations

Technical Specifications:
Maximum Sheet Size: approx. 20 in x 33 in (508 x 838 mm)
Minimum Sheet Size: approx. 4 in x 6 in (102 x 152 mm)
Folding Speed: up to 8,000 sheets per hour (200 m/min)
Minimum Fold Length: approx. 1.5 in (38 mm)
Pile Height Capacity: approx. 27.5 in (700 mm)
Electrical: 208–230V, 60Hz, single phase (per nameplate)
