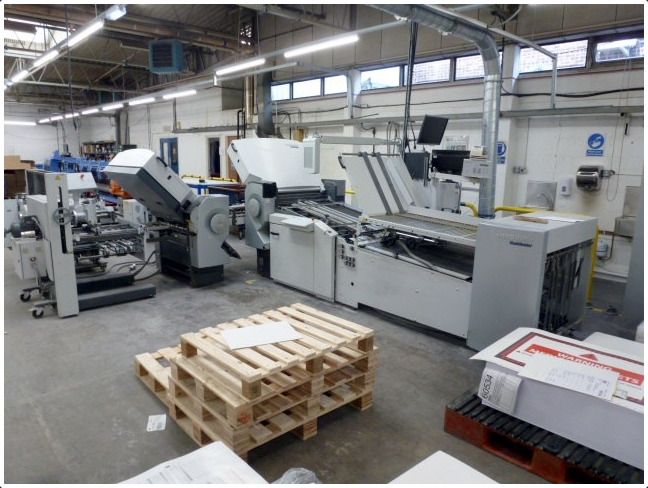

Stahl TH 82-4-4-2

Max. sheet size (wxl): 820x1280 mm
Min. sheet size (wxl): 140x180 mm
Max. / min. fold length 1th buckle plate: 620/670 mm
Max. / min. fold length 2nd station: 580 mm
Max. / min. fold length 3rd station: 460 mm
Max. / min. fold length 4th station: 330 mm
Speed: 25 to 230 folds/min
Max. pile height: 80 mm
Power consumption: 6.6 kVA
• With low operator strain, double wheel suction head for wide format sheets.
• Digital microprocessor control with touch screen display for automatic setting of fold plates
and roller pressures with learning function for signature length, suction & spacing
with run monitoring,integrated total and batch counter with memory.
• Touch-screen for fully automatic setting of fold plates and roller pressures.
• Combination buckle plates with swing-away deflectors for quick change from stop to fold.
• Setting adjustments can be made outside the machine ‘on the fly’.
• Sound hoods covering all buckle units.
• SAK-66 shingle belt delivery table.
Including compressor, tools, spares & manuals.
Accessories:
Electronic gate-fold plate with control unit.
VFZ-66 mobile electronic ‘Z’ knife fold unit.
