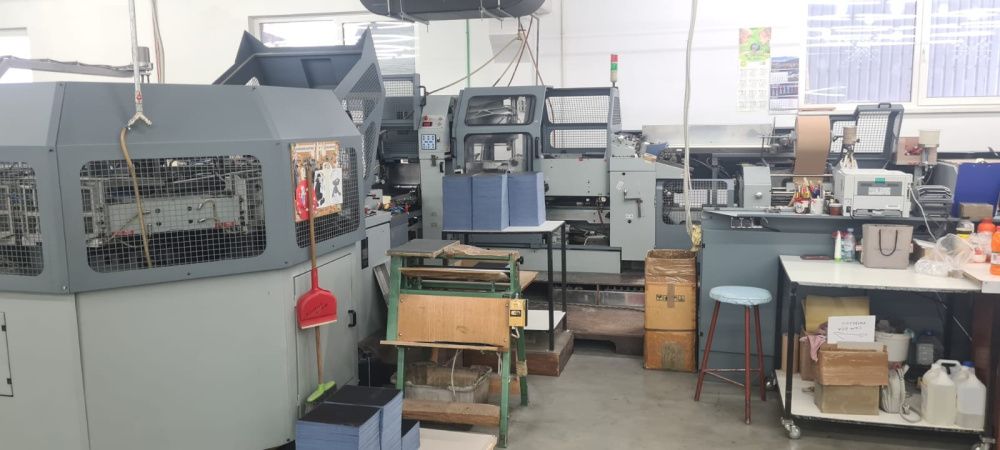

Stahl, VBF BL 500

One fully automatic book production line BL 500, consisting of:
1. Core Bookline RHE 525
With centrally selectable automatic adjustment system CAC/COS for the production of case-bound books.
It is possible to process both thread-sewn and adhesive-bound book blocks, with rounded or square spines, and to hang in covers with rounded or square spines.

Machine equipment:
• Electronic measuring system for format input of book block and cover into the CAC/COS system
• Adjustment motors for automatic machine setup
• Timing carriage and continuous chain conveyor system for format-retaining book transport
• Quick-change devices for interchangeable parts
• 1st gluing and gauze station
• 2nd gluing and headband/backlining station
• Pneumatically controlled forming cushions for full-surface pressing of the backlining material
• Numerical input of cutting width for gauze and backlining material
• Stepper motors for precise feeding of gauze and backlining material
• Universal divider for head or foot alignment with block rounding unit
• Cover opening station (DAS)
• Cover forming unit (spine molding), thermostat-controlled up to 300°C, with automatic lowering
• Folding-in unit and glue roller system incl. cleaning trays
• Delivery and infeed conveyor to folding-in and pressing machine EP 608/L

Format Ranges (standard sizes):
Book block:
• Max: 270 × 380 × 75 mm
• Min: 100 × 100 × 5 mm

Finished book:
• Max: 280 × 390 × 80 mm
• Min: 105 × 105 × 5 mm (+ cover thickness)

Opened cover:
• Max: 650 × 390 mm
• Min: 210 × 105 mm

Cover thickness:
• Max: 5 mm
* With special thin-book rounding device (optional): block thickness from 2 mm possible

2. Folding-in and Pressing Machine EP 608/R
For fully automatic pressing-in of hung-in books with uninterrupted, thermostatically and pressure-controlled pressing plates for spine and cover surfaces.
Books are fed from the delivery belt of the core bookline into the EP 608.
Via a distribution table, two books are loaded simultaneously into two pressing stations and unloaded at the delivery station.
This unique and patented technical solution enables a 50% increase in mechanical cycle speed, i.e. 26 cycles at a nominal output of 52 books/min.

EP 608/R – Equipment
• Motor-driven and CAC/COS-controlled automatic adjustment of pressing jaws
• Selector switch for switching on pressing bars
• Selector switch for format adjustment
• Motorized fine correction of machine base setting during operation
• Quick-change devices for pressing bars, forming punches, and prism table
• Selector switch for EP 608 pressing cycle
• Post-forming of rounding and fitting the book block into the cover
• Control lamps for monitoring pressing bar function
• Display and monitoring of all electrical functions on control panel and CAC/COS monitor
• Digital temperature display of thermostatically controlled pressing bars
• Adjustable pressing pressure of jaws and pressing bars
• CE marking (EU standard)
• Certification by German Employers’ Liability Insurance Association

Format Ranges – EP 608/R
Book:
• Max: 300 × 390 × 80 mm
• Min: 80 × 100 × 5 mm
