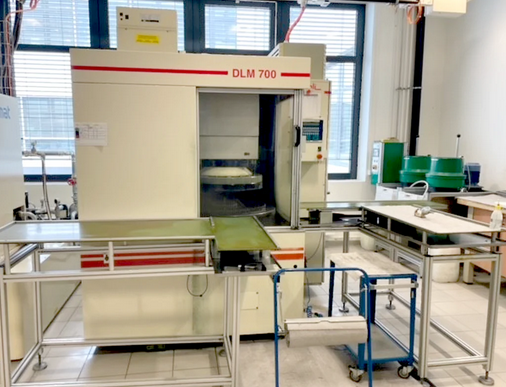

Stahli DLM 700

Execution: Two Wheels
Execution: With Pin Ring
Number of Rotor Discs: 4 - 8
Maximum Wheel Diameter: 650 mm
Maximum Workpiece Height: 100 mm
Upper Wheel Speed: 0 - 100 rpm
Lower Wheel Speed: 0 - 100 rpm
Workpiece Drive Speed: 0 - 100 rpm
Continuous Load on Workpiece: 600 daN
Voltage: 400 V
Air Connection: 7 - 8 bar
Main Motor Power: 4 kW
Pin Ring Drive Power: 2 kW
Disc Drive Power: 2 kW
Total Installed Power: 18 kW
Machine Weight: 3000 kg
Machine Length: 2100 mm
Machine Width: 1750 mm
Machine Height: 2100 mm
Set of Rotor Discs
Tool Cabinet
Oil Mist Extractor
Lamp
Loading and Unloading Table
Rinsing Gun
