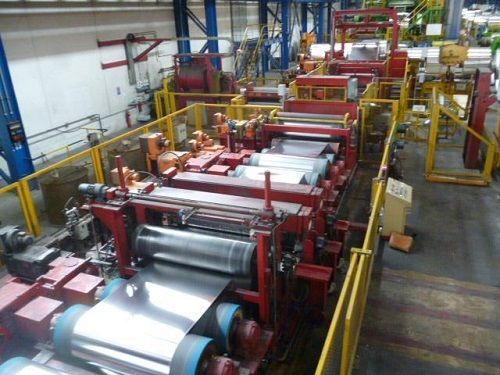

Stamco TENSION LEVELING LINE

Width 700mm - 1650mm
Max/min thickness 0.2mm - 1.5mm
Max tensile strength 350 MPa
Line speed 180 mpm max
Max coil weight 12,000 kg
Uncoiler spool ID 320/382/400/500 (600mm)
Uncoiler coil OD 2200mm
Recoiler spool ID 320/382/400/500 (600mm)
Recoiler coil OD 2200mm
Working direction right to left
Strip edge control
Bending leveler section
Work roll 35mm - 38mm
Backup roll 135mm
3 strip tension stations
Edge trimming shear and scrap winder
Strip press
New control panel and software
Complete controls, electric and hydraulics
Belt wrapper
Uninstalled
