Stamtec OCP-200 Press 220 US TON

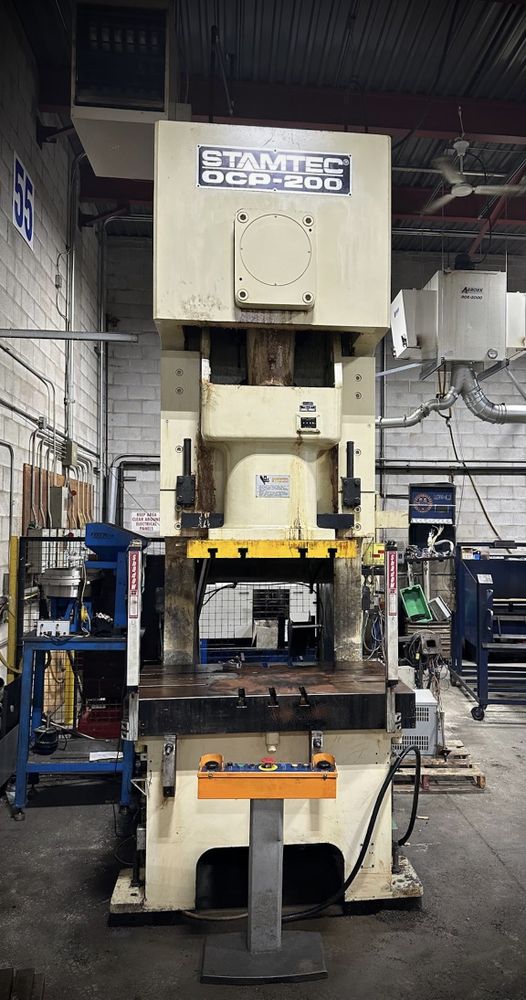

Stamtec OCP-200 Press
Year: 2007

CAPACITY 220 US TON
STROKE 7.9″
MAX DIE HEIGHT 17.7″ SDAU OVER 6.3″ hIGH BOLSTER
BED AREA 55.1″ X 32.3″ (RL X FB)
SPEED 20 – 45 SPM
SLIDE ADJUSTMENT 4.3″ MOTORIZED
SLIDE AREA 33.5″ X 25.6″ (RL X FB) t-slotted
BOLSTER PLATE 55.1″ X 32.3″ (RL X FB) X 6.3″ hIGH T-SLOTTED
DISTANCE BETWEEN UPRIGHTS 31″
FLOOR TO BED 34″
CLUTCH STAMTEC WET CLUTCH / BRAKE COMBINATION
ELECTRICS WILL INCLUDE NEW CIECO 1100R PRESS CONTROL FOR RECONDITIONED PRICE
ELECTRIC MOTOR 20 HP 1750 RPM 480V-3-60 EDDY CURRENT DRIVE
APPROX DIMENSIONS 72″ X 114″ (RL X FB) X 162″ HIGH
APPROX WEIGHT 46,000 lbs

Equipped With
FLYWHEEL BRAKE, HYDRAULIC OVERLOAD SYSTEM
AIR COUNTERBALANCE SYSTEM
AUTOMATIC LUBRICATION SYSTEM
DIE HEIGHT INDICATOR
FLOOR STANDING
SINGLE BACK GEARED DESIGN
