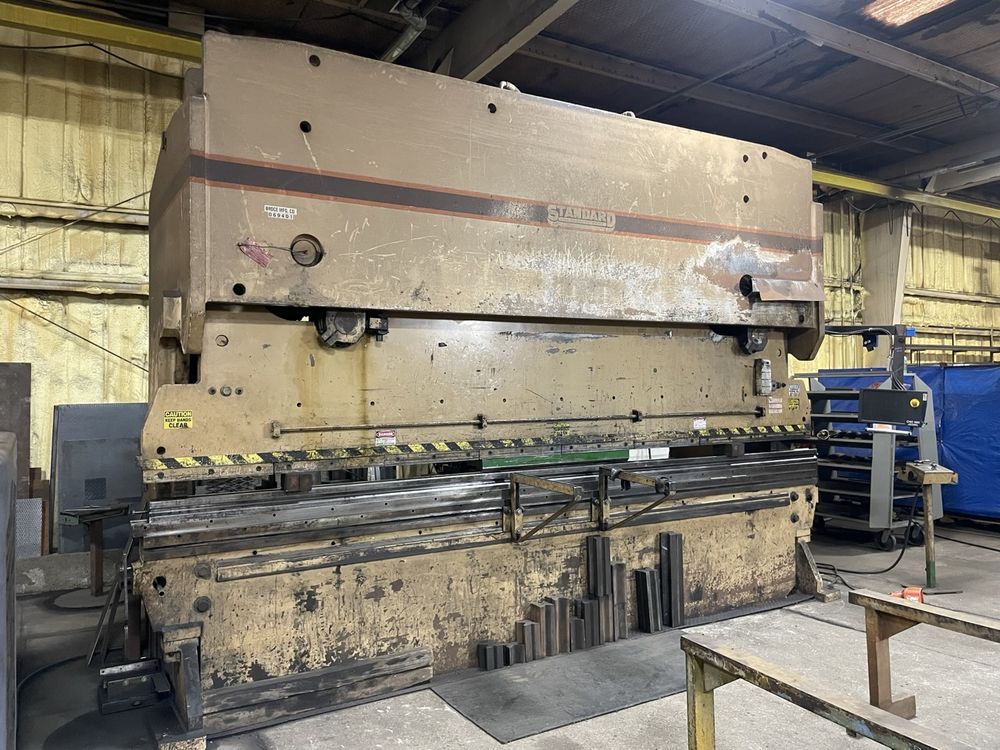

Standard AB-325-16 325 Ton

Tonnage 325 Ton
Bending Length 192"
Distance Between Housings 173"
Throat Depth 10"
Open Height 16"
Stroke Length 8"
Closed Height 8"
Fast Approach Speed 112 IPM
Fast Return Speed 18 IPM
Press Speed 89 IPM
Motor Size 30 HP – 220/440V – 3 Phs
Capacities (Mild Steel) 5/16"
Weight 66,000 Lbs
Pit Requirements 172" long x 12" wide x 14" deep
In-Line Depth Stop
Hydraulic Pressure Tonnage Control w/Gauge
Portable Control Station w/Inch Control
Portable Control Station w/Emergency Stop
Operation & Parts Manual
Large Bore Single Hydraulic Cylinders
Massive Heavy Duty Welded Frame
Full Tonnage – Entire Length Of Bed & Ram Stroke
Manifold Centralized Lube System
Hand/Foot Safety Sequence w/Foot Switch
+/- 0.001" Ram Repeatability
Simple & Precise Ram Adjustment
All Components Off The Shelf
Off-Center Load Capability
