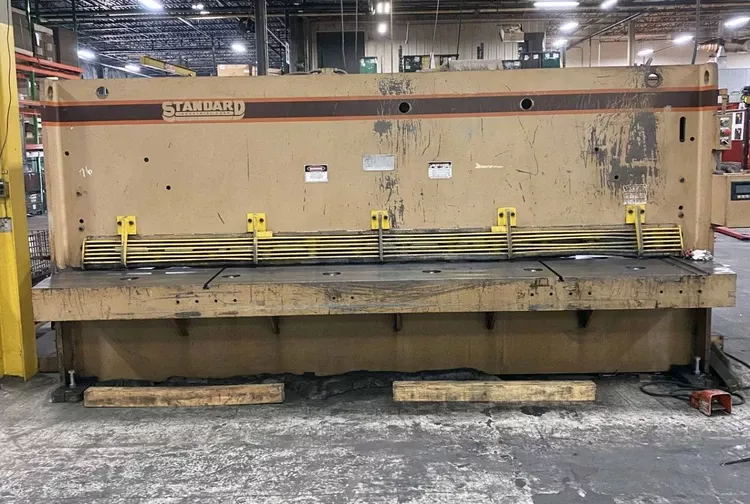

Standard AS250-12

Shearing Tons Available: 36 TON
Maximum Shearing Capacity: 12' x 1/4"
Blade Length: 144"
Blade Size: 1" x 3" x 148"
Back Gauge: 36"
Number of Hydraulic Hold-Downs: 13
Total Hold-Down Pressure: 36 TON
Strokes Per Minute Full Width: 15 SPM
Strokes Per Minute 12" Wide: 40 SPM
Ram Speed Down: 110 IPM
Ram Speed Up: 173 IPM
Motor Power: 20 HP
Overall Dimensions: 174" x 87"
Overall Height: 86"
Weight: 25000 lbs
36" Front Operated Power Back Gauge
Adjustable Stroke Length
Ball Rollers in Table
Hydraulic Hold-Downs
No Pit Required
Floor Mounted Design
