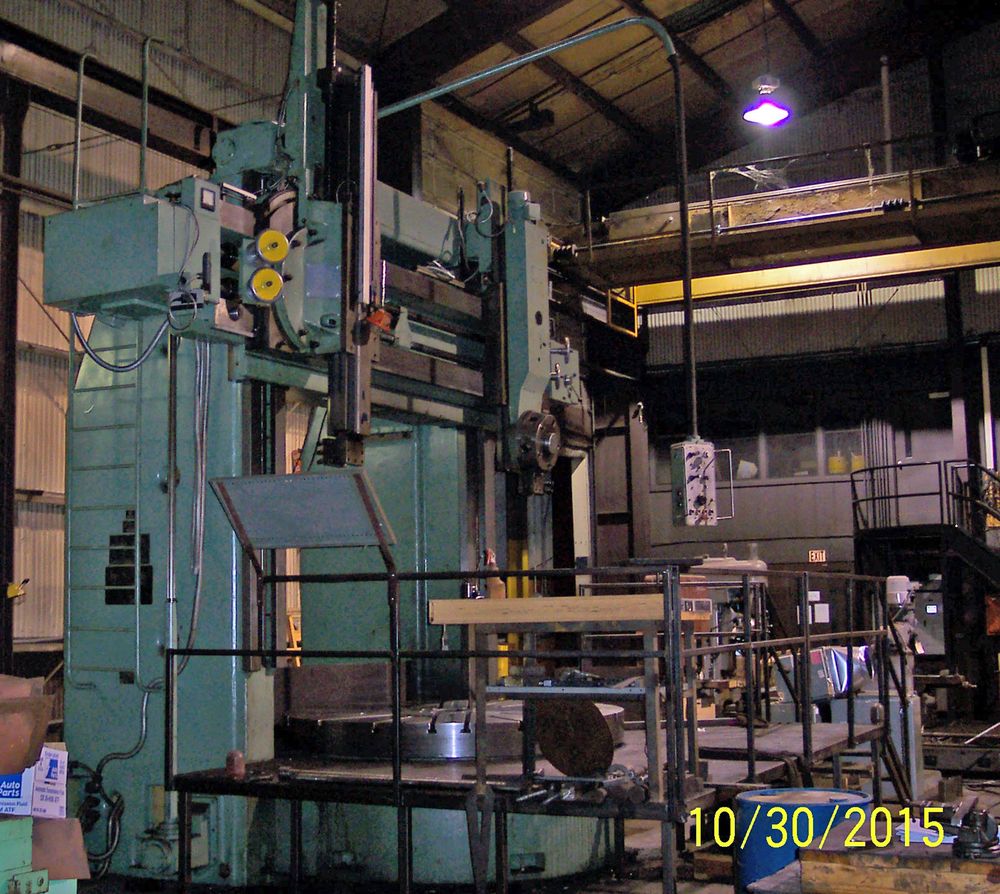

Stanko 1525 Swing: 98"

Table diameter: 88" (4-jaw chuck)
Height under rail: 86"
Table speeds: 1.6 - 80 RPM
Maximum workpiece weight: 28,600 lbs
Turret vertical travel: 62"
Ram swivel: 30 degrees
Side head travel: 38"
Motor power: 55 HP
Overall dimensions (W x D x H): 154" x 159" x 180"
Machine weight (approx.): 78,000 lbs
Equipped with 87.9" diameter 4-jaw chuck
Mitutoyo 4 axis DRO
5 position power indexing turret head
Side head (not installed)
Threading and taper turning
Pendant control
Flush floor design
