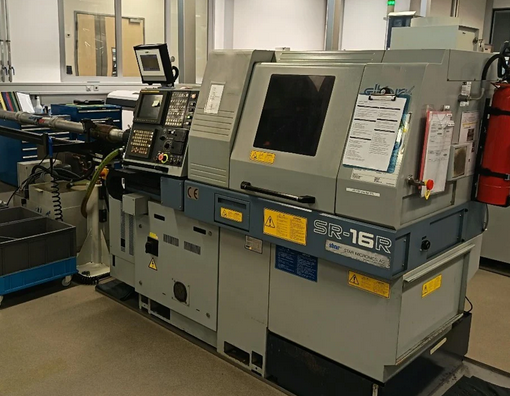

Star FANUC 18i-T 12,000 RPM SR-16 R CNC Swiss Type Lathe 7 Axis

Control: FANUC 18i-T
Number of Axes: 7
Number of Spindles: 2

Maximum Turning Length: 205 mm
Maximum Drilling Diameter: 10 mm
Spindle Bore: 16 mm

Main Spindle Speed: 12,000 RPM
Back Spindle Speed: 8,000 RPM
Driven Tool Speed: 8,000 RPM

C-Axis Resolution (Main Spindle): 0.01°
C-Axis Resolution (Back Spindle): 15°

Axis Travels:
X1: 16 mm
X2: 40 mm
Y1: 89 mm
Z1: 205 mm
Z2: 80 mm

Rapid Traverse: 20 m/min

Electrical: 400V / 3 Phase / 50 Hz
Power Requirement: 6 kVA

Machine Dimensions: 2,207 x 1,080 x 1,700 mm
Machine Weight: 2,200 kg

Accessories:
LNS SUPER HYDROBAR Bar Feeder
ELBARON Oil Mist Extractor
Transformer
