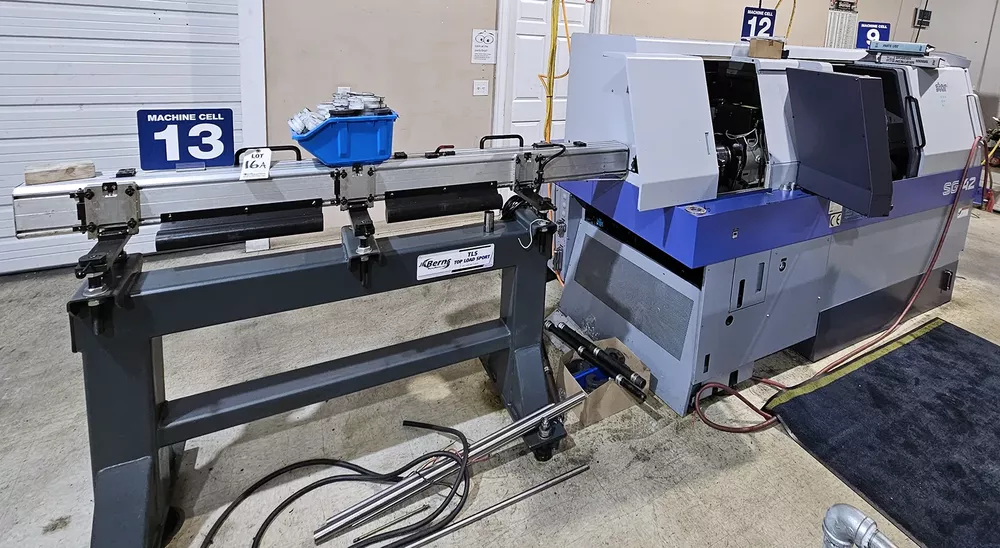

Star Fanuc 32i – Model A control 7,000 rpm SG-42 6 Axis

X1 axis
Y2 axis
Z1 axis (turret)
Z2 axis (sub spindle)
C1 axis
C2 axis
Fanuc 32i – Model A control
Bar support – JF Berns TLS-551
C-axis control
Chip conveyor
Coolant tank
1.65" max bar size
7,000 rpm main spindle
5,700 rpm spindle
4" max machining length
100 mm max part length
75 mm max part projection length
10 mm (25/64") max drilling capacity
23 mm (29/32") max drilling capacity
M12 × P1.75 max tapping capacity
M8 × P1.25 max tapping capacity
1 tool/station (20 mm)
2 tools/station (16 mm)
10-station turret
Max 2/station power drive attachments
Max 3/station power drive attachments
Sleeve holder
