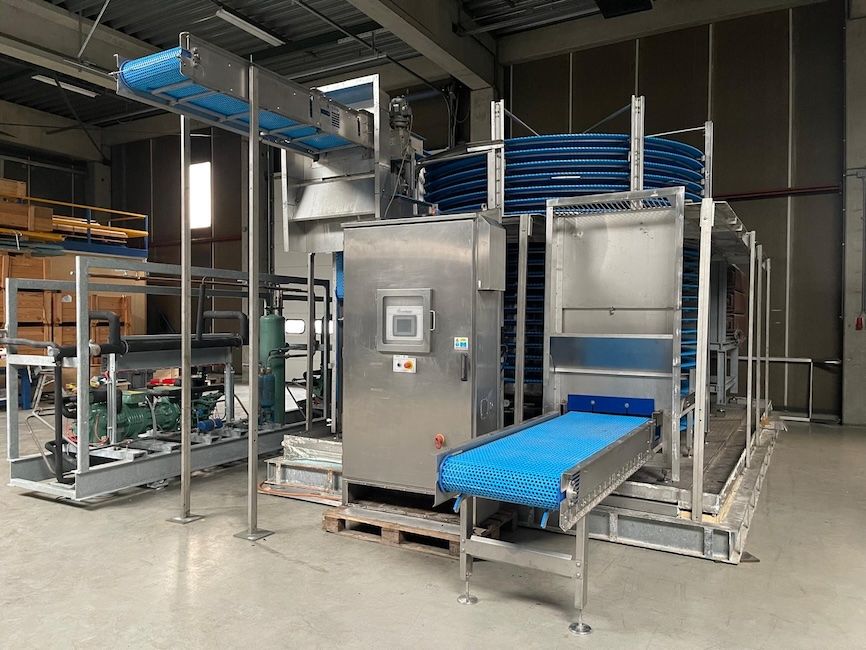

Starfrost Helix 85-22RR-21-5 Spiral Freezer

Cooling capacity: 120 kW / approx. 35 tons
Absorbed power: 65–71 kW
Voltage: 400 V
Refrigerant: R449A / R507A

Belt direction: counterclockwise
Belt type: plastic belt
Number of tiers: 21.5
Effective belt area: 84.5 m2
Belt length: approx. 150 m
Belt width (gross/net): 559 / 509 mm
Retention time: 15–60 min
Maximum product height: 50 mm

Infeed height: 75 cm
Outfeed height: 315 cm

Cooling system: Goedhart DX evaporator system
Fans: 2 × 7.5 kW high-pressure fans (vertical airflow top to bottom)

Refrigeration package: Bitzer two-stage piston system
Compressors: 4 × Bitzer S6G-25.2Y-40P
Oil separator: included
Liquid tank: included
Air-cooled condenser: included
Control system: Danfoss control system

Cleaning system: CIP cleaning system included
Defrosting: water defrost system
Control cabinet: stainless steel Starfrost controller
Dimensions (L × W × H): 650 × 400 × 380 cm

Warranty: 3 months on main components after inspection
Condition note: delivered without panels/casing (optional)
