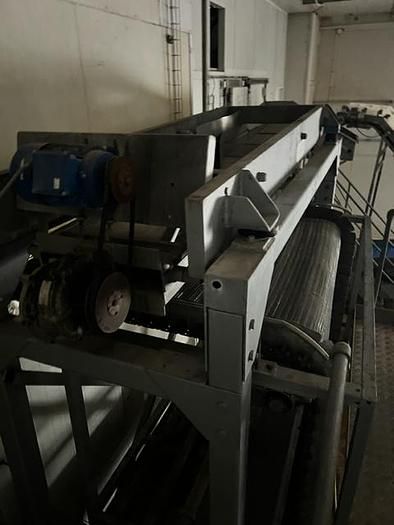

Starfrost Turbo Twin Pass 86-5-6700 fluidization tunnel

Dimensions:
Total length - 13,680 mm;
Total width - 5,700 mm;
Total height - 4,500 mm.

Efficiency at evaporation +12°C / -38°C - approx. 6.700 kg/h (green peas);
Required cooling power - 830 kW at 6,700 kg/h of peas;
Refrigerant - NH3, pump system;
Evaporation temperature - -38°C of the evaporator (cooler);

Total number of fans - 7;
Fans of the pre-freezing zone - 3 x 11 kW;
Frozen zone fans (homes) - 4 x 11 kW;
Number of evaporators (coolers) - 3 pcs.;
Liquid NH3 power connection - 60.3 mm;
Liquid NH3 suction connection - 114.3 mm;
Belt drive - 2 x 0.75 kW;
Water demand for frostbite - quantity: 40 m3/h; temperature: +20°C;
Water demand for washing the tape - quantity: 1.7 l/sec.; pressure: 2 bar;
Total electrical power for fans and drives - 82 kW;
Length of the tape - approx. 13,000 mm;
Belt width - 1,520 mm;
Tape mesh (stainless steel)
