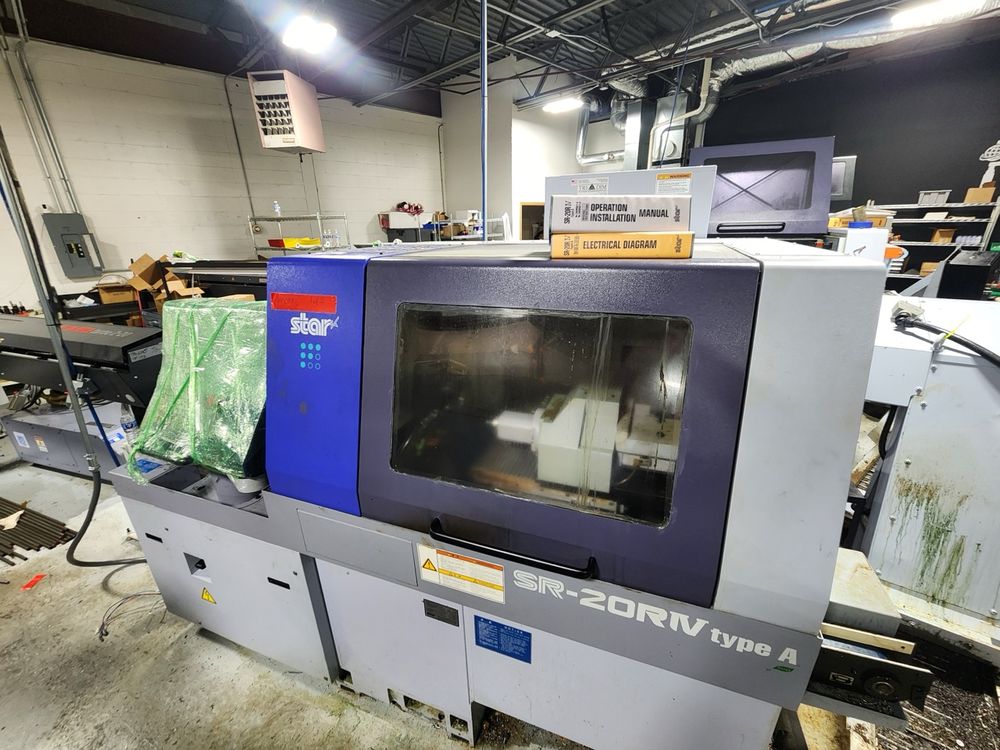

Starline Fanuc 32i-B CNC 10,000 RPM SR-20RIV Type A 8 Axis

X1-Axis Travel
Y1-Axis Travel
Z1-Axis Travel
C1-Axis
X2-Axis Travel
Y2-Axis Travel
Z2-Axis Travel
C2-Axis

Control: Fanuc 32i-B CNC
Bar Capacity: 20 mm (0.79 in)
Max Machining Length (per chuck): 203 mm (8 in)
Main Spindle Speed: Up to 10,000 RPM
Sub Spindle Speed: Up to 8,000 RPM
Main Spindle Motor: 2.2 / 3.7 kW (3 / 5 HP)
Sub Spindle Motor: 1.5 / 2.2 kW (2 / 3 HP)
Live Tool Speed: Up to 8,000 RPM
Cross-Drilling Stations: 6 front + 5 rear
Back-Working Tools: 8 positions for drilling, milling, tapping
Total Tool Capacity: ≈ 27 tools
Coolant System: High-pressure coolant (1,000 psi option)
Chip Conveyor: LNS Turbo HB
Dimensions (L × W × H): ≈ 100″ × 55″ × 70″
Machine Weight: ≈ 6,000 lb
