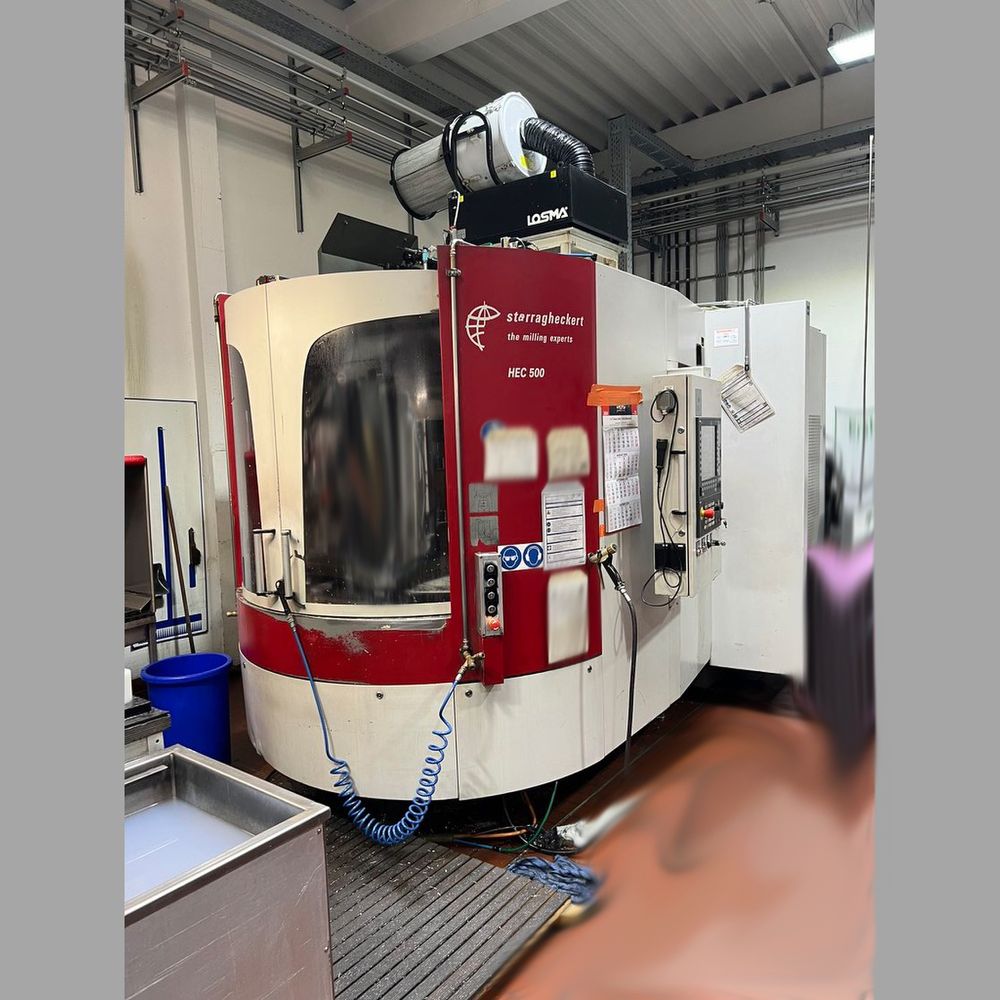

Heckert, Starrag STARRAG HECKERT HEC 500 D 4 Axis

STARRAG HECKERT HEC 500 D
2012

Control Siemens 840D solutionline
X travel 750 mm
Y travel 750 mm
Z travel 725 mm
Rapid traverse X/Y/Z 100/100/100 m/min
Acceleration X/Y/Z 11/14/11 m/s²
Tool taper HSK 63
Spindle speed 15000 RPM
Spindle power 31 kW at 10-40% duty cycle
Spindle torque 200 Nm at 10-40% duty cycle
Spindle front bearing diameter 75 mm
Horizontal milling spindle
Torque support for multi-spindle drilling heads
Tool magazine 60 stations
Max tool diameter 160 mm
Max tool length 400 mm
Max tool weight 10 kg
Chip-to-chip time 2.7 s
Pallet changer 2-fold
Pallet size 500 x 630 mm
Max workpiece weight per pallet 600 kg
NC-controlled rotary table
Hydraulic clamping
IR measuring probe
Tool breakage monitoring
Tool life monitoring
Fully enclosed work area
Work area lighting
Oil/emulsion mist extraction unit
Scraper-type chip conveyor
Machine operates with emulsion
Coolant unit with paper band filter
Modem for remote diagnosis and teleservice
Tapping without compensation chuck
Machine dimensions approx. 6005 x 3200 x 3000 mm
Machine weight approx. 15000 kg
