Stax Technologies Universal Case packer type UCP 700 of year 2018
EUROPE (Central and Eastern)
Stax UNIVERSAL CASE PACKER UCP – 700 of year 2018

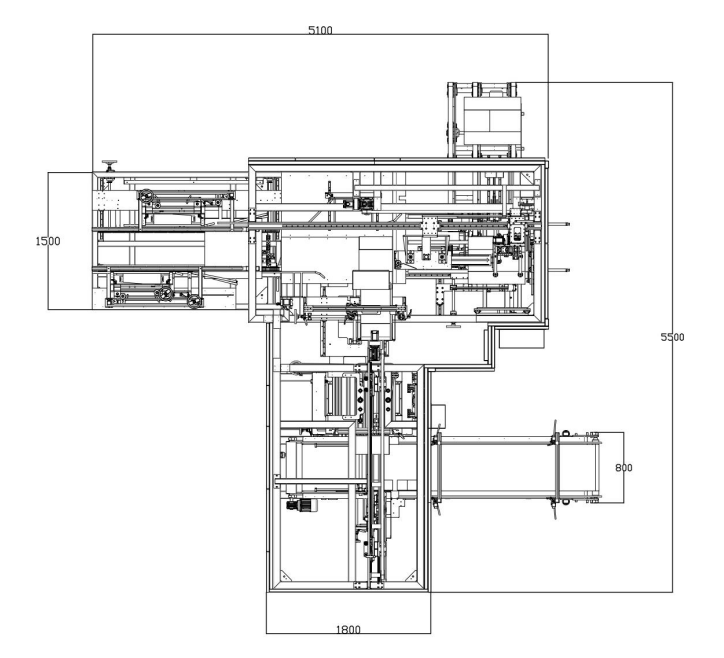

see drawings, video at card here - or video youtube link : https://www.youtube.com/watch?v=SAl1HkUPfuc
TECHNICAL SPECIFICATIONS:
Max production speed Up to 8 box/min (depends of the package type)
Format change over time 10 min

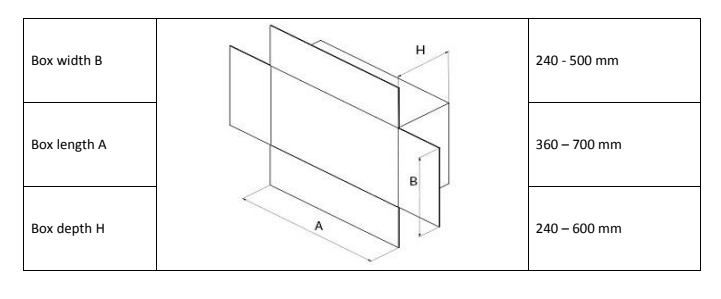

Box width 240 - 500 mm
Box length 360 – 700 mm
Box depth 240 – 600 mm
Machine height at infeed 800 mm
Machine height at discharge 1000 mm
Machine weight 2100 Kg
Machine standard color White
Noise level dbA < 80
Standard power supply 380V 3-phase – 50/60 Hz + 220 V single phase
Control voltage 24 VDC
Wiring According to EN 60204 norms
Electrical plant According to CE standards
Installed power 8 kW
Real power consumption < 4,5 kW
Compresed air consumption < 500 l/min
Working air pressure 6 bar
PLC Omron NJ1-501
Motion control Omron NJ1-501
Servo-drives Omron G5 series
Brushless Servomotors Omron G5/G series
Asynchronous Electrical motors Motovario
Human-Machine Interface Omron
Pushbuttons and Safety switches Giovenzana international G.G.
Connectors Klemsan
Main switch and Fuses Eaton
24 VDC transformer Siemens
Relays Omron
Inverters Omron MX series
Photocells Omron
Proximity switches Balluff
Electrovalves and Air Cylinders Festo
important note: this is additional option for VFold line for sale at the same factory - priority sale as an option together with this ref 2752143-2-CP : V-fold towel (ZZ towel ) production machine & options ( link: https://www.wotol.com/product/v-fold-towel-zz-towel-production-machine-options/2752143 )
