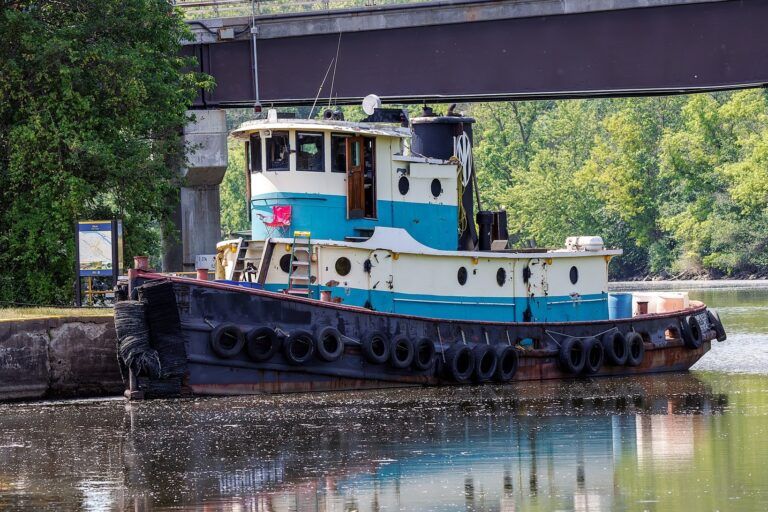

Steel Tugboat Gross Tonnage 80

Cummins QSM 11
Length Overall 74′
Beam 18′
Draft Light 7.5′
Draft Heavy 10′
Net Tonnage 31
Shell Plate Thickness 7/16″
Weight 125 tons
Engine Cummins QSM 11 WET, Keel Cooled, 500 hp, 80 hours
Gear D-I Industrial, DMT 6550, 6.95:1
Propeller 74″ x 42″ RH Stainless on 8.5″ shaft
Cruising Speed 8-9 knots
Maximum Speed 12 knots
Fuel Capacity 4,000 gallons
Fuel Consumption 2 gph @ 6 knots
Fuel Consumption 6 gph @ 8 knots
Fuel Consumption 14 gph @ 12 knots
Genset Kubota Diesel, Keel Cooled, 27 kW
Winches Two manual barge winches
Crew Quarters 1 + room for 2 additional bunks
Captain Quarters Includes sink
Galley Present
Head Includes shower, marine toilet, sink
Fresh Water Capacity 300 gallons
Holding Tank Capacity 2,500 gallons
Electronics 2 VHF radios
Electronics Older Garmin GPS
Electronics 2 Radars, 6 mile and 24 mile
Electronics Garmin direction finder and depth sounder
Electronics Binnacle gyroscope
Steering 24V Electric over hydraulic rudder
Safety Equipment Fire extinguishers, halon, fireboy system (not connected)
