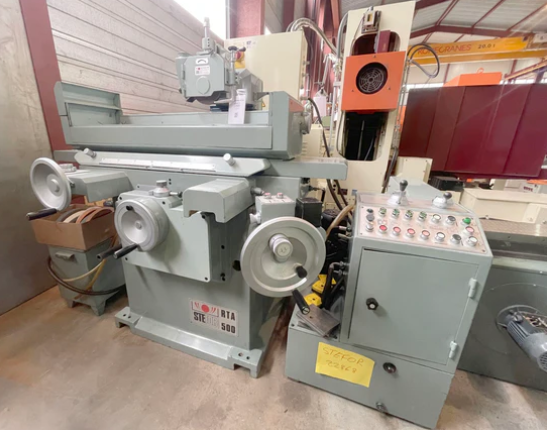

Stefor RTA 500

Table length 665 mm
Table width 205 mm
Grinding length 500 mm
Grinding width 200 mm
Hydraulic execution
Max. distance from table to spindle centreline 425 mm
Longitudinal travel (X-axis) 550 mm
Transversal travel (Y-axis) 200 mm
Automatic cross-feed stepless 1–30 m/min
Table speeds stepless 1–22 m/min
Grinding wheel diameter 225 mm
Grinding wheel width 30 mm
Grinding wheel speed 2800 rpm
Voltage 3x380 V 50 Hz
Grinding spindle motor 2 CV
Total power 3 CV
Machine weight 850 kg
Overall dimensions L1500 x W1300 x H1700 mm
Control dimensions L1000 x W600 x H850 mm
Coolant system
Magnetic plate L665 x W200 mm
Redressing device
Set of grinding wheels
