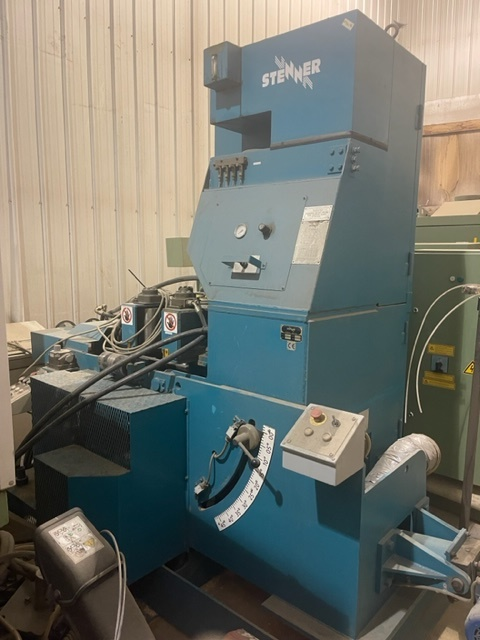

Stenner VHF-36

Precision vertical rip saw with 36" diameter handwheel that can accommodate 4" wide blades.
Solid handwheel with domed surface for blade guidance.
Feed using 3 pairs of individually motorized rollers on each side of the blade.
Variable speed hydraulic drive system. -High precision drive system for centered cutting for already moulded product, also ordinary cutting of various sizes.
Manual adjustment of the dimensions to be slit.
Easy-to-replace phenolic blade guide that requires no adjustment.
Blade change from the back of the machine. -Steering wheel housing with safety switch.
The engine cannot be started if the doors are open.
Ducting and 0.6" (150 mm) suction opening integrated into the base.
The blade motor is equipped with a direct current (DC) brake.
Pneumatic blade tensioning
Steering wheel diameter: 36" (915 mm)
Maximum cutting width : 12" (305 mm)
Maximum cutting height : 16" (305 mm)
Tilt of the frame and plank: 0? to 45?
Dimensions of the planks: 19` 6" x 4" (5944 x 100 mm)
Kerf dimension: 0.075" to 0.085" (1.9 to 2.2 mm)
Main Motor: 40 HP (30 kW)
Feed motors per hydraulic unit: 7.5 HP (5.5 kW)
Vitesse d?avance : o a 200 pi/min (0 a 60 m/min)
Working Height: 33.5" (850 mm)
Suction Requirement: 980 CFM (1665 m3/hr)
Approximate weight: 5280 lbs. (2400 kg)
Floor space required (approx.): 40" X 98" (1010 x 2474 mm)
