Steton P85
Ref :
2765396-15-MT
Condition :
Used
Manufacturer :
Steton
Model :
P85
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

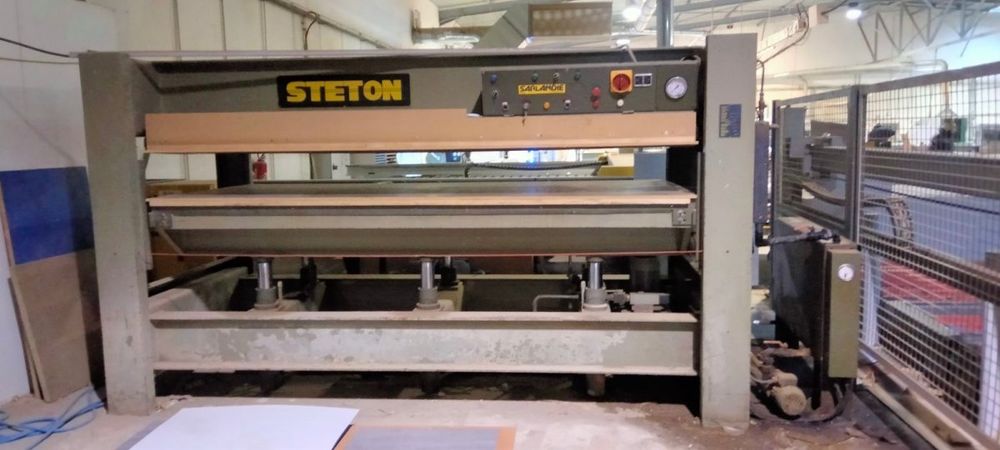

Hydraulic Press with Heated Platens
General Specifications:
- Press platen dimensions: 3000 x 1300 mm
- Press platen pressure: 85 t
- Specific pressure over 80% of the platen surface: 2.2 kg/cm²
- Pressure cylinders: 6 x Ø 85 mm, 450 mm stroke
- Lower movable platen
- Opening between press plates: 450 mm
- Side loading: 3000 mm
HEATING SYSTEM:
ELECTRIC OIL-FIRED BOILER (MAXIMUM TEMPERATURE 120°C)
Complete heating system including pump, expansion tanks, fittings, and electrical panel with adjustable platen temperature
Package dimensions: 385 x 165 x 185 cm (H)
Weight: 3,500 kg
