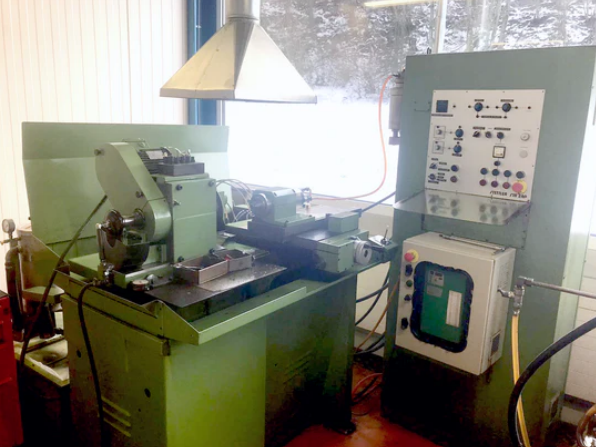

Stettler STR 200
Ref :
2804912-3-CP
Condition :
Used
Manufacturer :
Stettler
Model :
STR 200
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Min. internal grinding diameter: 1 mm
Max. internal grinding diameter: 30 mm
Grinding depth: 1–100 mm
Centre height: 185 mm
Distance between centres: 200 mm
Workpiece spindle speeds: 550–800 RPM
Workpiece spindle speed steps: 3
Spindle bore: 20 mm
Spindle taper: 25 W
Grinding spindle speeds: 30,000–45,000 RPM
Grinding table travel: 1–100 mm
Table speed: Stepless up to 5 m/min
Voltage: 380 V, 50 Hz, 3-phase
Machine weight: Approx. 610 kg
Machine dimensions: 1450 × 760 × 1600 mm
Redressing device
Coolant system
