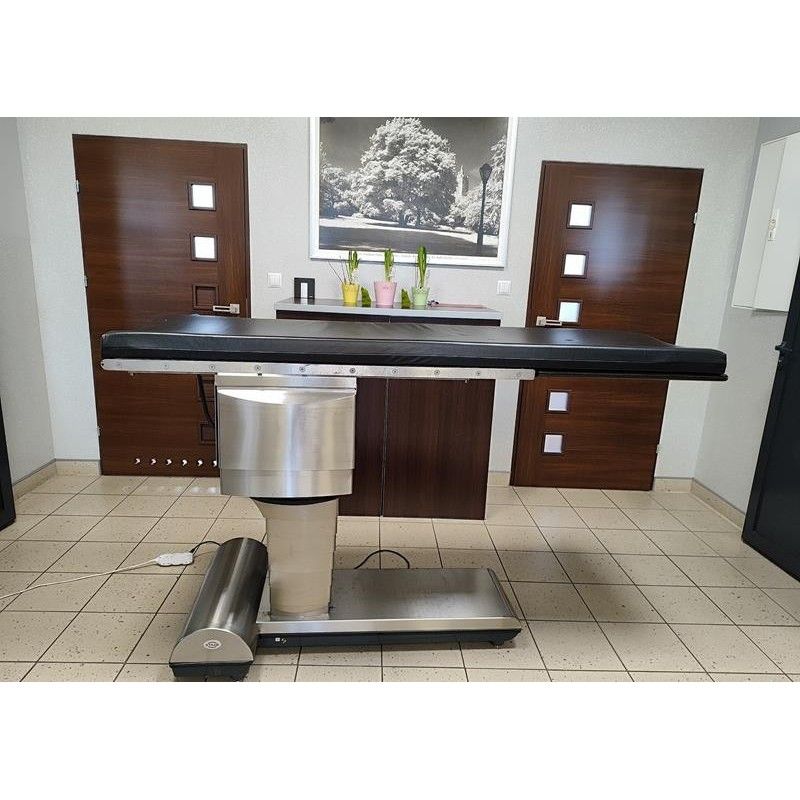

Stille AB Imagiq 508-170-000

Dimensions & Weight
Table Length: 2220 mm (with head) or 1950 mm (without head).
Table Width: 550 mm.
Height Range: Adjustable between 709 mm and 1087 mm.
Maximum Load Capacity: Supports a patient weight of up to 200 kg (440 lbs).
Unit Weight: Approximately 275 kg.

Imaging Capabilities (Radiolucent)
Table Translucency: Carbon fiber structure with
a radiation attenuation equivalent of 1.1 mm Al.
Image Transmission Area: The radiolucent area extends up to 1950 mm,
providing maximum flexibility for the C-arm without the interference of metal structures.

Electrical Specifications
Input Voltage: 100-240 VAC, 50/60 Hz.
Power Consumption: Maximum 390 VA.
Backup Power Supply: Equipped with an internal battery system for cordless use
