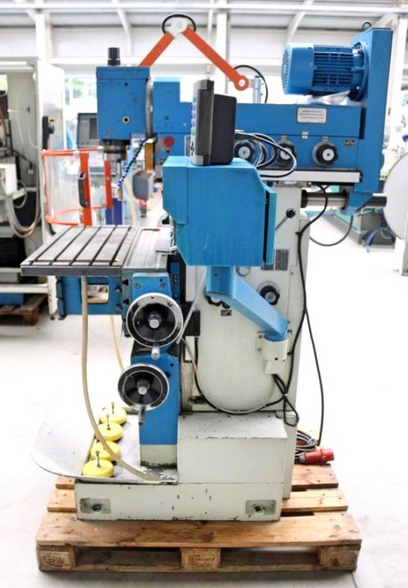

STIMIN UWF 220 Vertical 2240 rpm

STIMIN UWF 220
2010

X-Travel: 280/300 mm
Y-Travel: 250/270 mm
Z-Travel: 300/310 mm
Quill Stroke: 60 mm
Table Size: 670 x 320 mm
Table Load: 150 kg
T-Slots: 5 x 12 x 63 mm
Turning Speeds: 45–2240 rpm
Turning Speeds: 18 steps
Spindle Taper: ISO 40
Feed Range: 12.5–630 mm/min
Feed: 18 steps
Rapid Traverse: 1200 mm/min
Workpiece Weight: max. 150 kg
Motor Power: 1.6 kW
Machine Weight: 1100 kg
Machine Dimensions: 1265 x 1080 x 1620 mm
ACURITE 3-Axis Digital Display
Pivoting Control Panel with Emergency Stop
Electric Adjustment of X/Y/Z Axes
Rapid Traverse in 3 Directions
Pivoting Milling Spindle Guard
Coolant System
Lower Chip Tray
Vertical Milling Head with Quill Adjustment
Milling Head Rotation 90°
Tool Holder ISO / DIN 40 / 2080
Fixed Angle Table 670 x 320 mm
Minimum Distance Base Table to Spindle Axis
4 Machine Feet
Electrical Diagram
